Si-V-010, Si-V-010-T, Si-I-420, Si-I-420-T (analog interface)
Last modified:

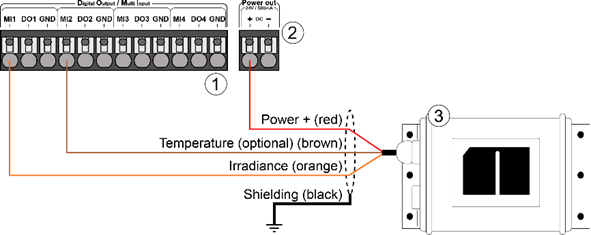

Si-V-010, Si-V-010-T, Si-I-420, Si-I-420-T (analog interface): Sensor connection
Description | |
|---|---|
| 1 | Data logger terminal, digital output/multi-input |
| 2 | Data logger terminal, Power Out |
| 3 | Irradiance sensor |
Connection
Wire color | Use |
|---|---|
Red | Power supply (12 … 28 V DC) |
Brown | Temperature signal (0…10 V / 0…20 mA / 12.28…20 mA) |
Orange | Irradiance signal (0…10 V / 0…20 mA / 4…20 mA) |
Black (thick) | Shielding |
Configuration data
Sensor | Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|---|
Si-V-010 | Irradiance | Analog 0…10 V | W/m2 | 150 | 0 |
Si-V-010-T | Irradiance | Analog 0…10 V | W/m2 | 150 | 0 |
Temperature | Analog 0…10 V | °C | 13 | -40 | |
Si-V-420 | Irradiance | Analog 4…20 mA | W/m2 | 93.75 | -375 |
Si-V-420-T | Irradiance | Analog 4…20 mA | W/m2 | 93.75 | -375 |
Temperature | Analog 4…20 mA | °C | 8.125 | -72.5 |
