System plan portlet

Last modified:

Basic info

Item in the Portlet center

Icon for system plan portlet

Description

Displays a table of the system’s subsystems and components together with their performance values.

Prerequisites

None.

Portlet type

System level portlet: Add the portlet at the SYSTEM LEVEL.

Further details

Select a component in the table, and a corresponding chart will be displayed in the System plan chart portlet.

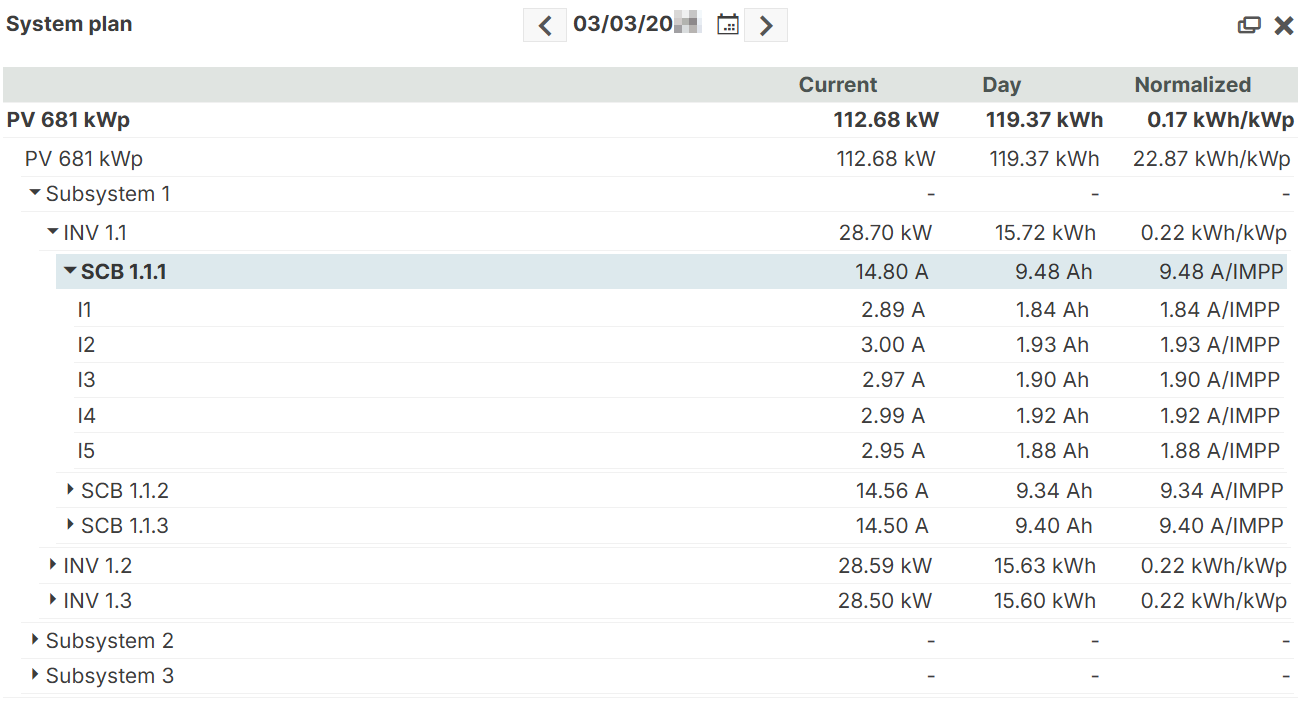

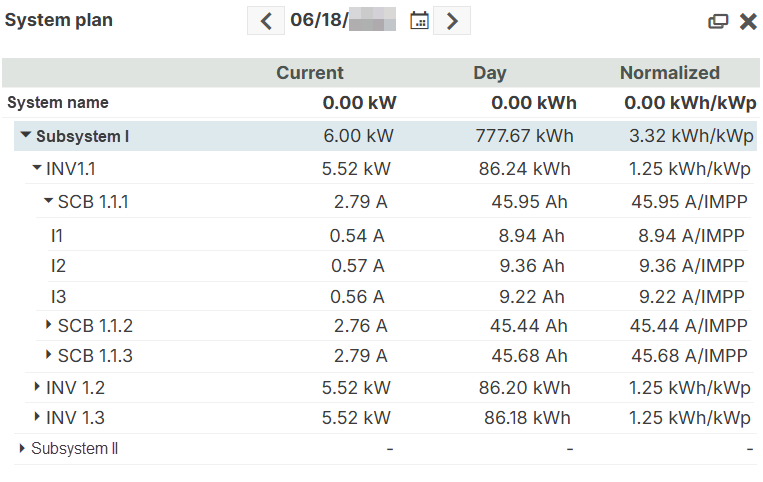

Overview of the portlet

System plan portlet

System plan portlet
