Control status portlet | mc Help Center

Last modified: 2025-08-27

Basic info

Item in the Portlet center

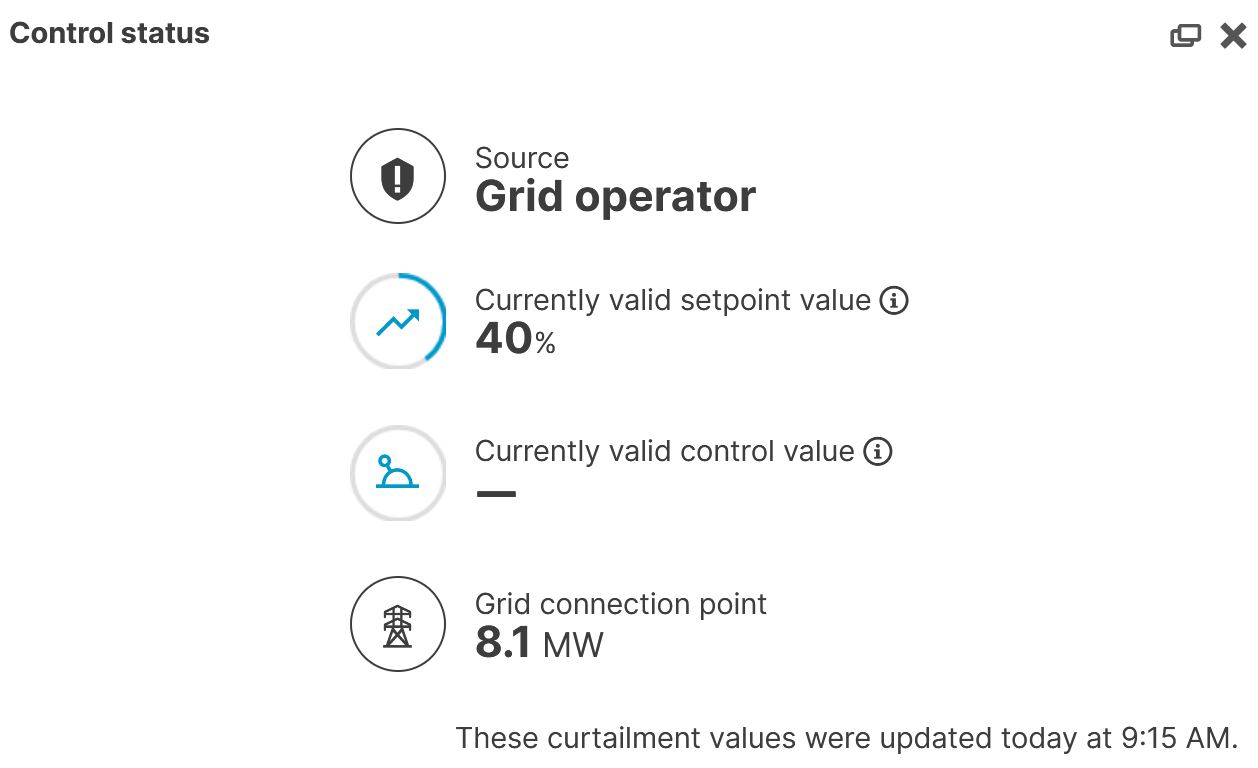

Description	The Control status portlet provides an overview of key power control (curtailment) data in real time. The following key power control (curtailment) data sources are included: Source of curtailment: Who carries out the curtailment. Currently valid setpoint value: Current active power limitation. Currently valid control value: BLUE'LOG Grayed out if the data logger is not a blue'Log. Grid connection point: How much power is entering the grid. BLUE'LOG If you use a blue’Log as your data logger, you can access the user interface directly from this portlet.
Prerequisites	Power plant controller (PPC) data must be available.
Portlet properties	System portlet: The portlet can be added at the SYSTEM LEVEL . Dynamic portlet: The portlet is updated when you select a different system name from the systems list.
Further details	None
