Linear equation
Last modified:
The linear equation model uses a linear regression for a specific reference period and irradiance to calculate a simulated target yield. To determine yield loss, the target yield is then compared with the actual yield. This model is suitable for calculating the overall cost of a failure.
Prerequisites:
Irradiance sensor
The system must have irradiation data available for the reference period.

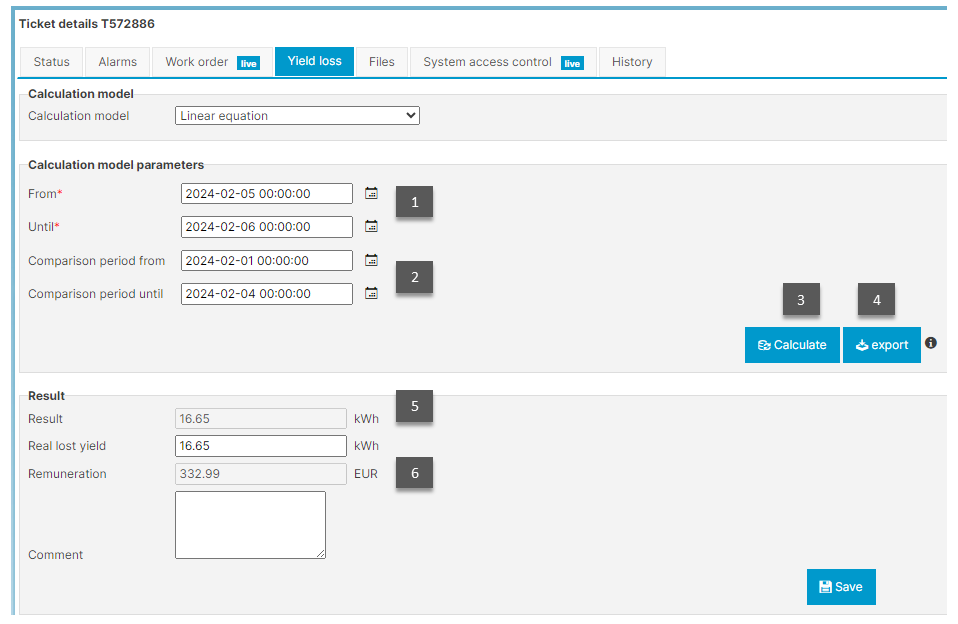

Linear equation example
Name | Details | |
|---|---|---|
| 1 | Calculation model parameters | Time period of ticket/disruption |
| 2 | Comparison period from/until | Reference period: time during which system was working normally |
| 3 |
| Start calculation |
| 4 |
| Download as a CSV |
| 5 | Result | Yield loss in kWh |
| 6 | Remuneration | Monetary value of yield loss |
