Logbook

Last modified: 05 Jun 2024

The logbook can be used for troubleshooting purposes. It gives you an overview of changes and events from the past, and which users have been active. For example, you can view when exports are triggered, or when a device is not working.

The logbook is only available in English.

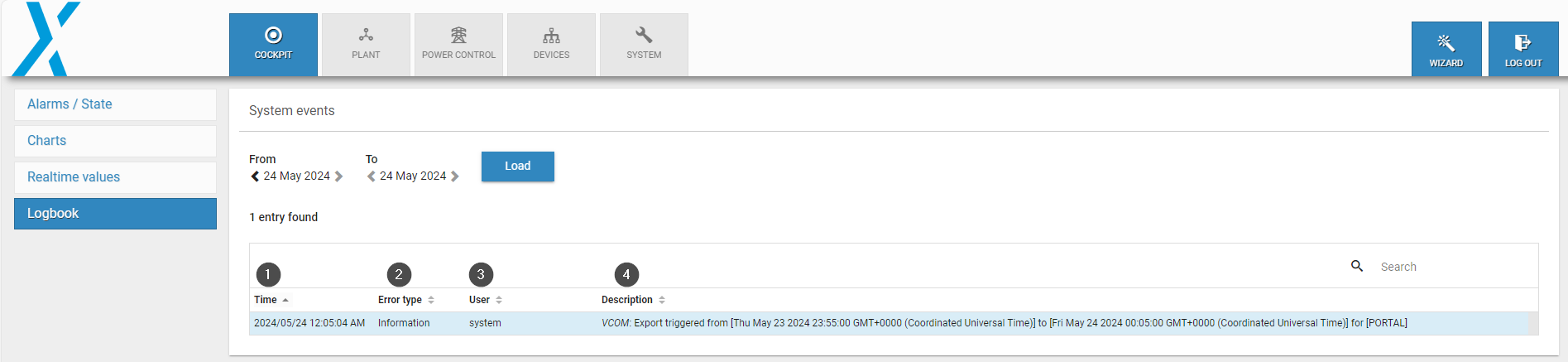

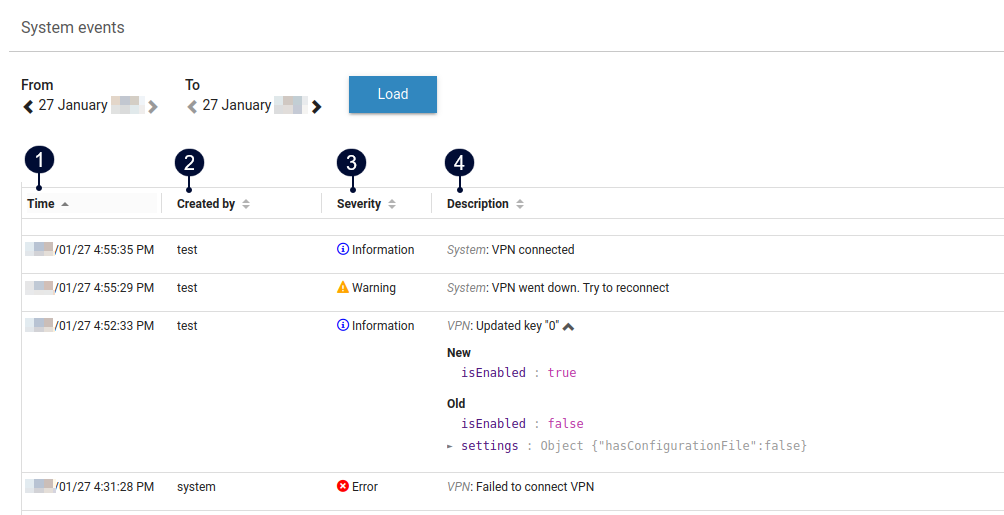

Overview of the logbook.png — Overview of the logbook

Item	Name	Details
1	Time	Timestamp of the event
2	Error type	Type of event: Error: Event that affects system operation. Example: Failed software update Warning: Event may only be temporary. Example: Lost connection to VCOM Information: The user made changes to the configuration, or the system itself triggered an event. Example: Scan for inverter SMA on RS485-1 started, system in operation
3	User	Displays whether the event was triggered by a user or by the system
4	Description	Name and details of the event. If you have made changes to any configurations, an Eye icon will be displayed next to an entry in the logbook. You can select the icon to view the old and new configurations.

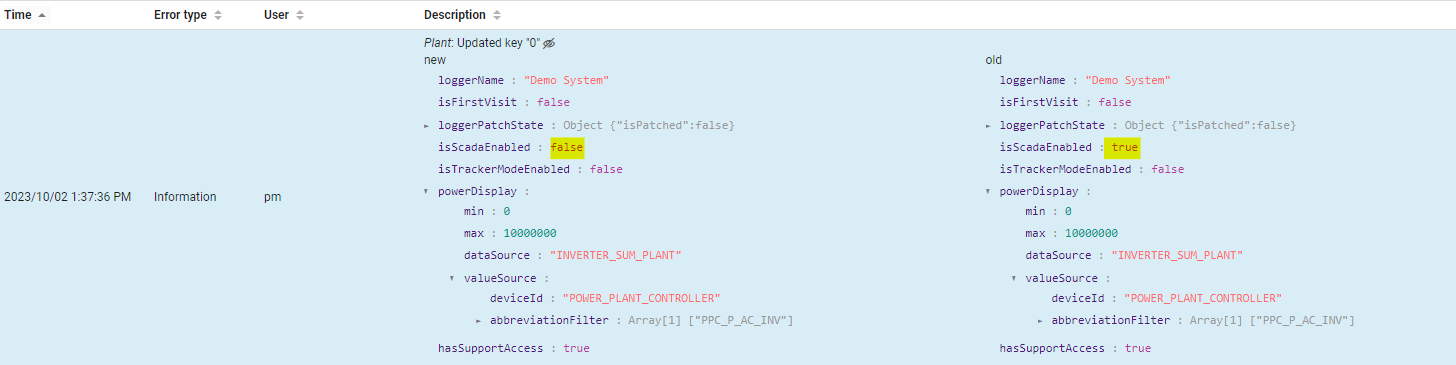

Example of a logbook description — Example of a description in the logbook
