Cockpit

Last modified: 04 Sep 2025

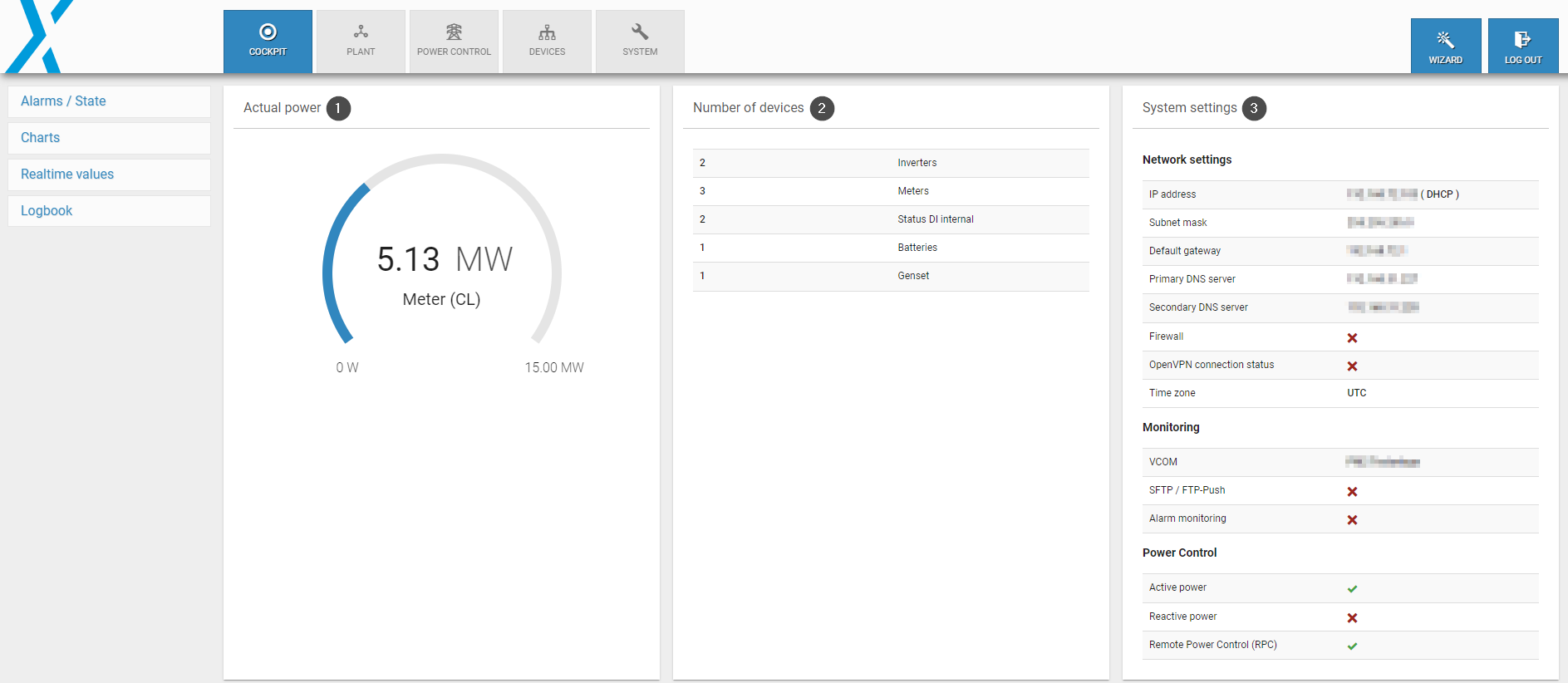

The Cockpit is the default landing page when you log into the blue'Log web interface. It gives you a quick overview of the actual power being read by the device, the number and type of connected devices, and an overview of the system settings.

Depending on your license model, the Cockpit will look slightly different.

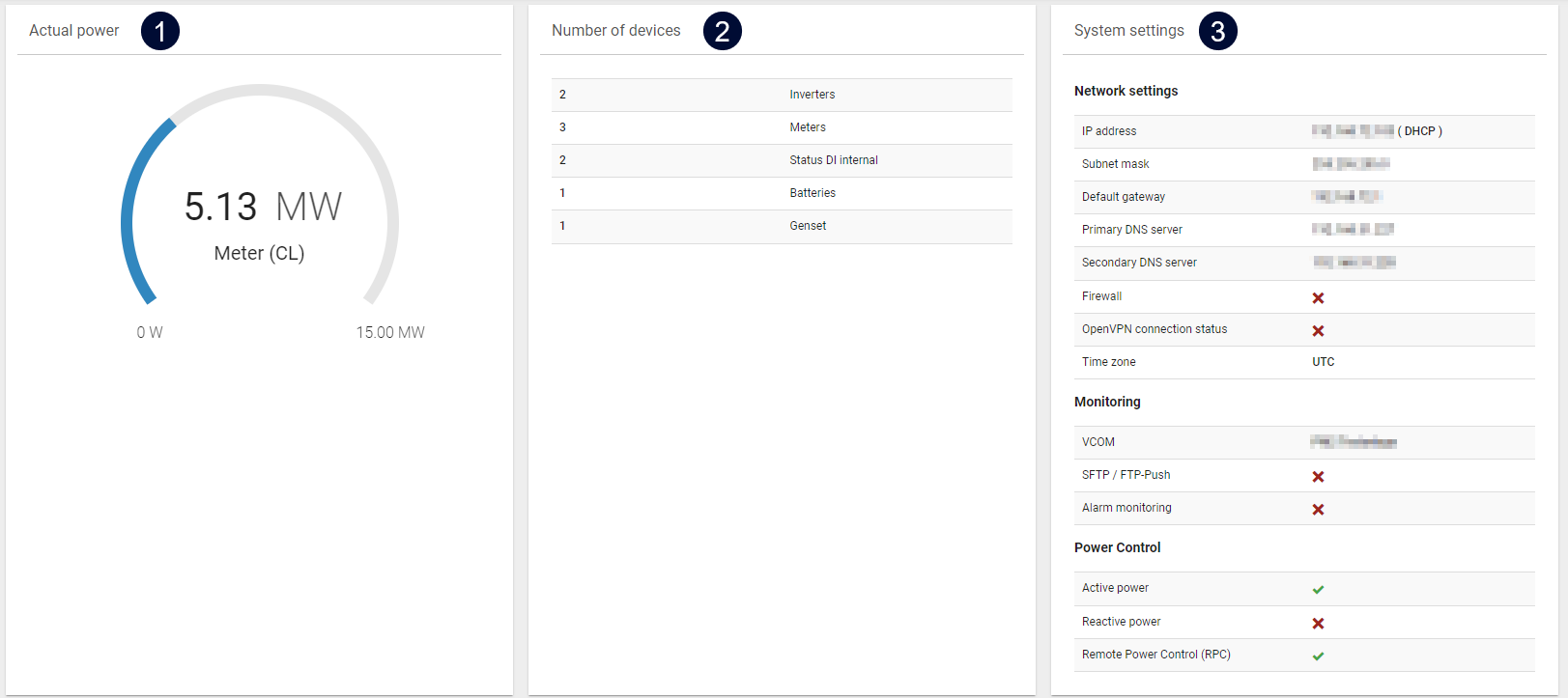

Cockpit without Hybrid EMS

Item	Name	Details
1	Actual power	Current AC power in kW or MW
2	Number of devices	Number and type of configured devices
3	System settings	Overall system settings

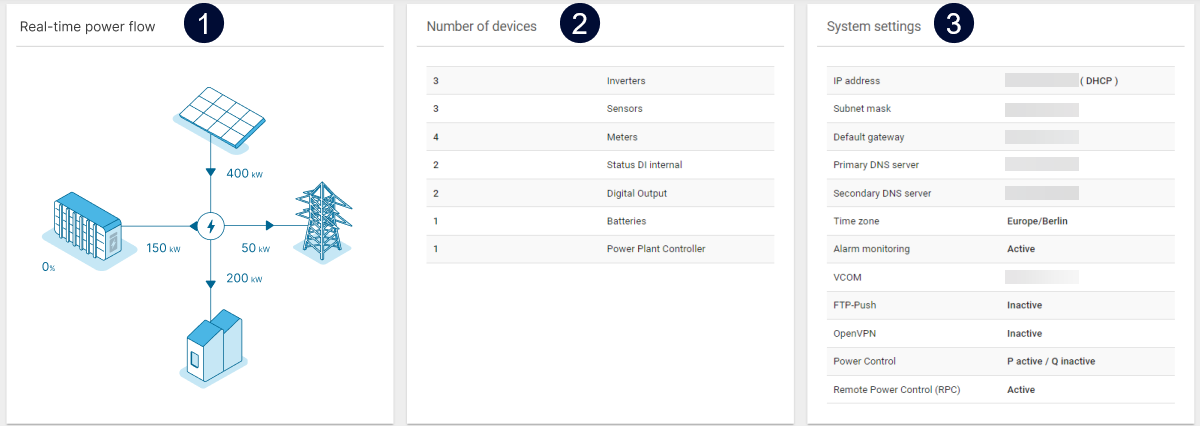

Cockpit with Hybrid EMS

Item

Name

Details

1

Power flow

Diagram of how power is flowing through your system in real time.
Depending on the plant type, different elements (grid, PV, battery, and load) are displayed.
If your plant has a battery system, the state of charge is displayed in the icon and as a number.
If a measurement is zero or in case of an error, the connecting lines will be displayed as dotted.

Prerequisites

Active power control is activated. See Power control (Hybrid EMS)
The type of plant must be selected. See Plant data (Hybrid EMS)

2

Number of devices

Number and type of configured devices.

3

System settings

Overall system settings.
