Sungrow Logger 1000/3000/4000

Last modified: 2026-08-07

Set up a Sungrow Logger 1000/3000/4000

📗

General tips

Have the data source (data logger, etc.) serial number on hand. When entering the serial number, pay attention to uppercase and lowercase letters and empty spaces.
The data source name can be freely selected. For recommendations, see our Naming guideline.
If possible, use data sources that support the same Measuring interval or align the intervals. Otherwise minor features may not work properly.
We strongly recommend ticking the check box Automatic device creation to ensure that VCOM automatically creates any new devices found during each data import.
If possible, perform a connection test once you have completed the configuration in both VCOM and the data source.

Data loggers only

For data loggers, update the firmware to the latest version prior to configuration.
For data loggers, any import that uses FTP can also use SFTP. The access data, such as the FTP server address, user name, and password remain identical. Only the port changes from port 21 (FTP) to port 2222 (SFTP).

APIs only

If you experience import issues with the API, please contact the respective API provider first.
Each day at midnight, VCOM checks for complete data and requests data from the past 7 days. If there are no limitations from the API and the data is available, the gaps will be filled.

Protocol	FTP/SFTP Push
File format	XML
Measuring interval	Variable: 300 sec/5 min recommended
Server	Provided during VCOM configuration
Supported device types	1000 / 3000 / 4000

Update the software to the latest version prior to configuration
Copy the FTP access data specified in the data logger configuration and store it in the Sungrow Logger (FTP server, FTP user name, FTP password)
Please note that device designations can only be assigned on the Sungrow data logger.
In case of issues, check the configuration of the time and timezone.

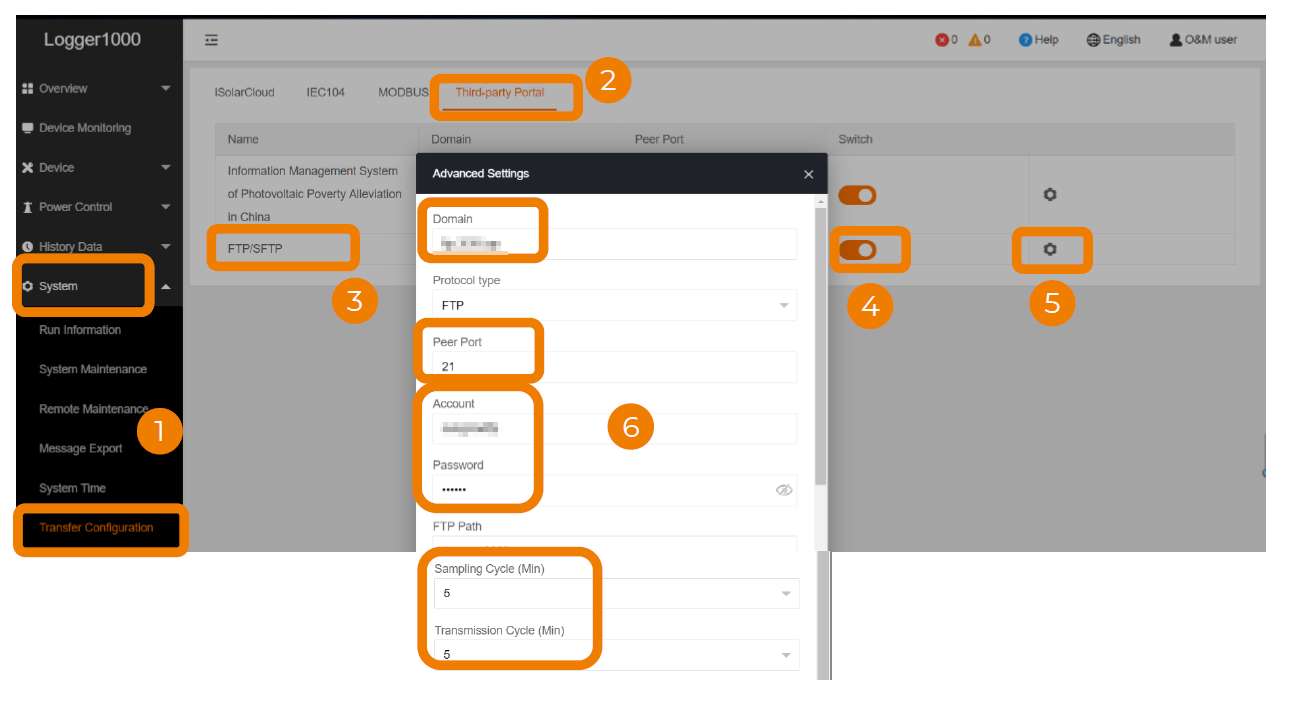

Configuration on Sungrow data logger

Prerequisites

Steps

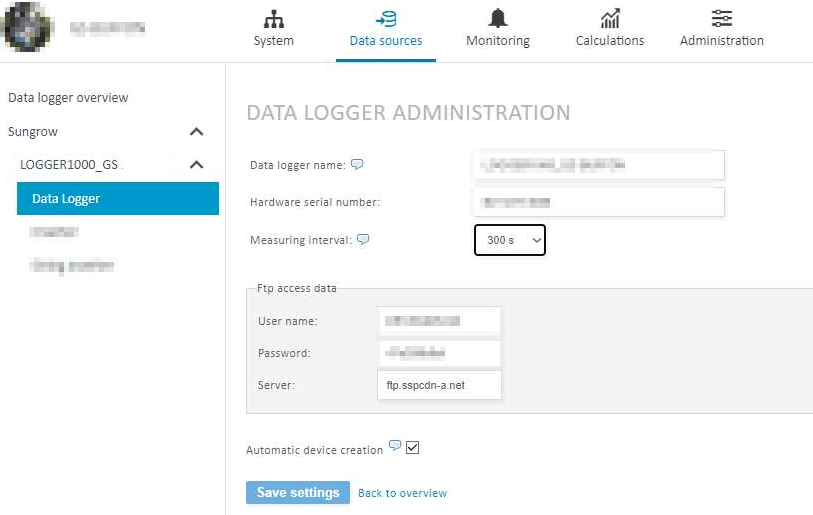

At system level , go to System settings > Data sources > Data logger overview.
Under New source of type, select Sungrow as the data source type from the dropdown.
Select Add.

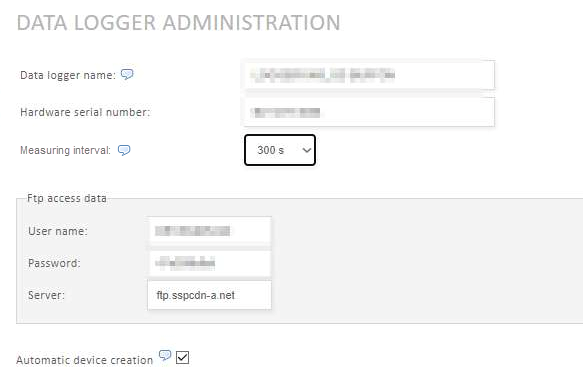

Enter the Data logger name, Hardware serial number, and Measuring interval.
Select Register new data logger.

The data logger is registered.
