Last modified:
|

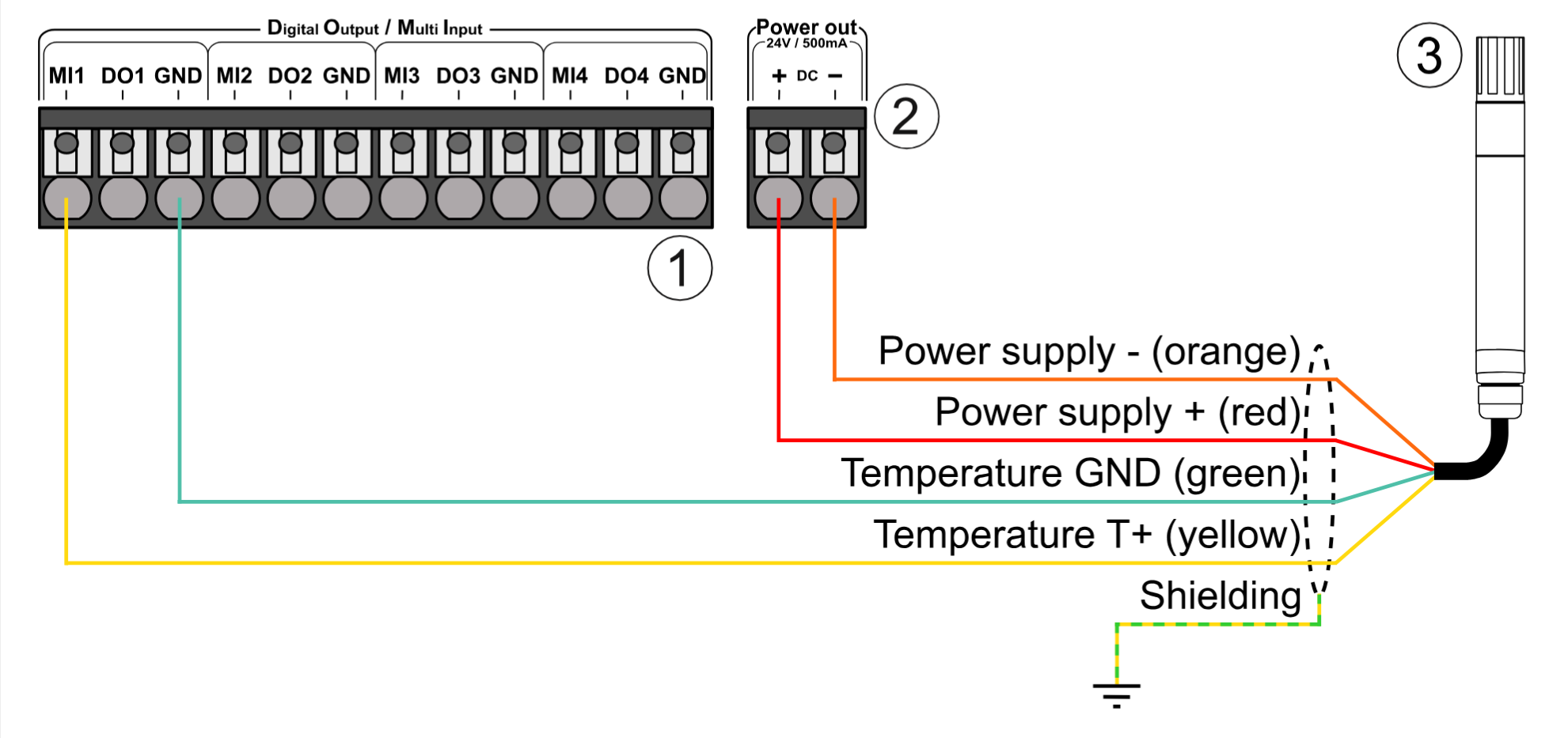

Description |
|
|---|---|
|
1 |
Data logger terminal, digital output / multi-input |
|
2 |
Data logger terminal, Power Out |
|
3 |
PT100 temperature sensor |
Connection
|
Wire color |
Use |
|---|---|
|
Orange |
Ground |
|
Red |
Supply voltage (24 V DC ± 10 %) |
|
Green |
Temperature signal colour |
|
Yellow |
Temperature signal (0…10 V) |
Configuration data
|
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|
|
Temperature |
Analog 0…10 V |
°C |
10 |
-30 |
