Overview of interfaces: blue'Log front panel
Last modified:

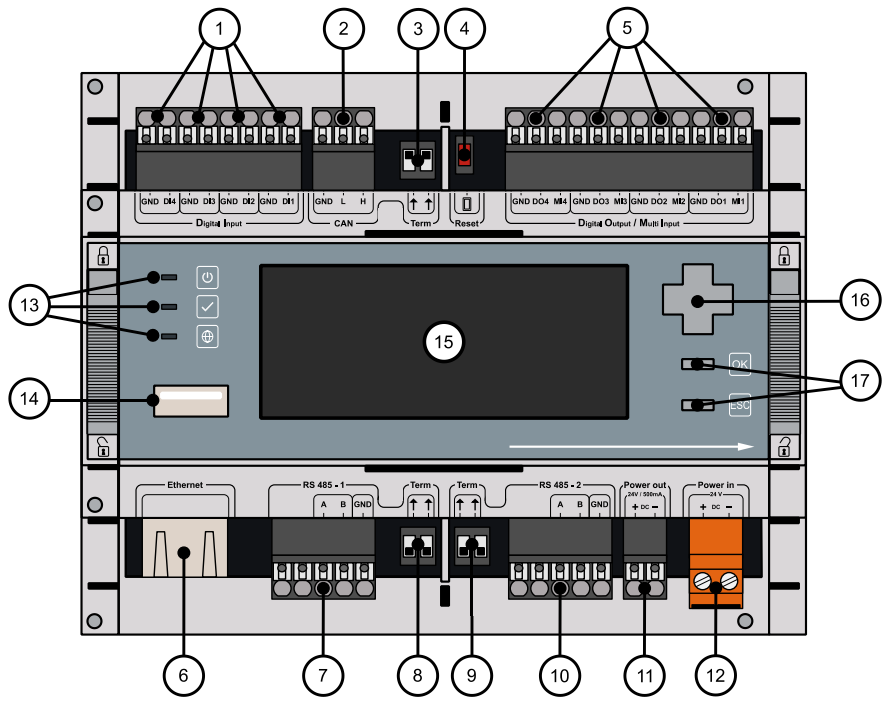

Overview of interfaces on the blue’Log front panel
Description | |
|---|---|
| 1 | Digital input (DI1–DI4) |
| 2 | CAN |
| 3 | CAN termination |
| 4 | Reset |
| 5 | Digital output / multi-input (DO1 – DO4, MI1 – MI4) |
| 6 | Ethernet |
| 7 | RS485 -1 |
| 8 | Termination RS 485 - 1 |
| 9 | Termination RS 485 - 2 |
| 10 | RS485 - 2 |
| 11 | Power out (24V DC / 500mA) |
| 12 | Power in (24 V DC) |
| 13 | LEDs: Power, status, online |
| 14 | USB interface |
| 15 | Display |
| 16 | Control pad |
