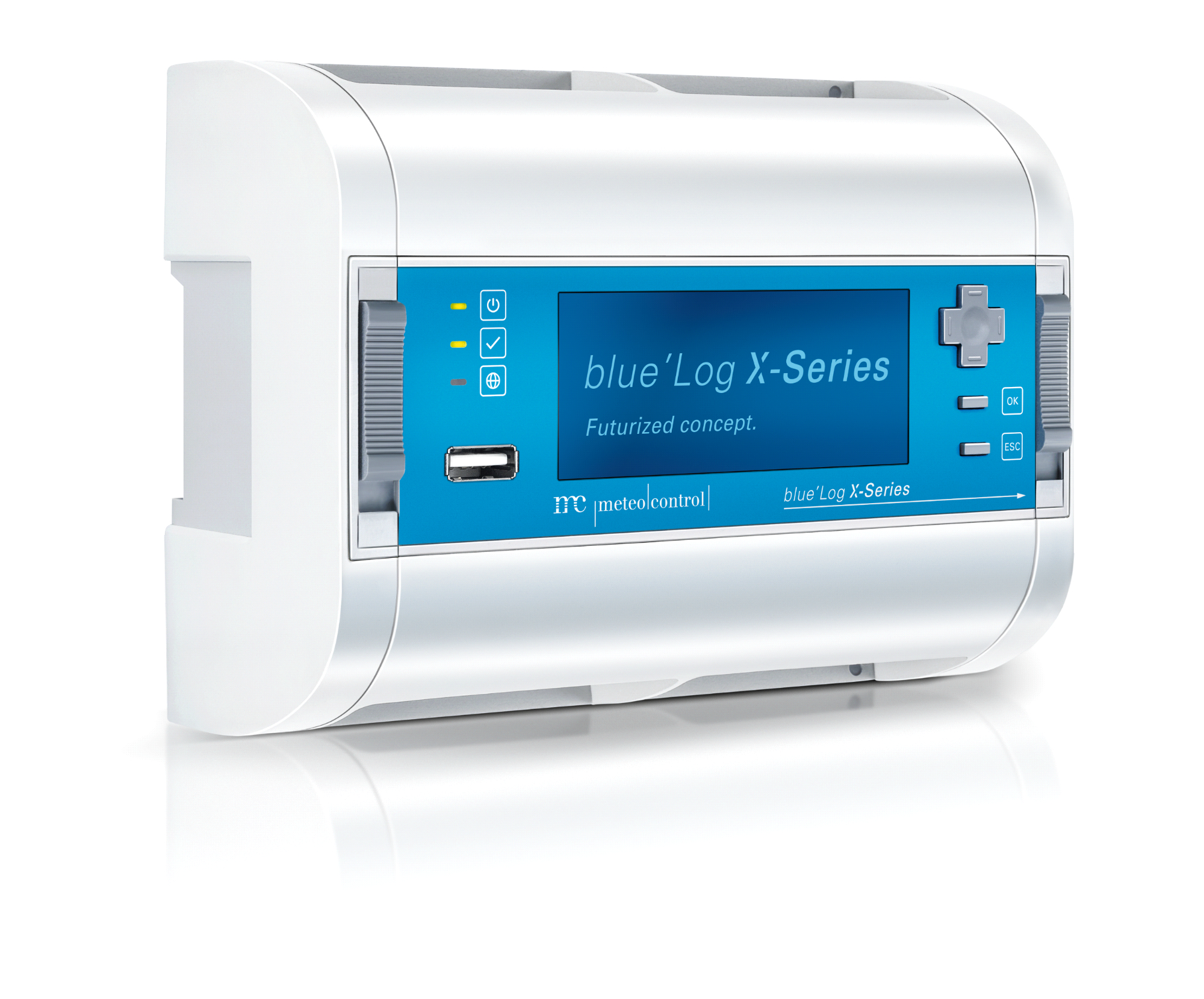

blue’Log XM/XC
Item no. 532.010-532.015, 532.019-532.029
The central component for controlling and monitoring PV systems.
Description
The blue’Log X-series data loggers comprehensively record key metrics from your renewable energy plant. They also provide various interfaces and functionality for power plant control, thus serving as the central component for grid-compliant feed-in. When used in conjunction with VCOM, the blue'Log transmits all recorded data to the cloud monitoring platform for in-depth analysis.
The blue’Log X series is available in two variants:
-
X-Monitoring (blue’Log XM)
-
X-Control (blue’Log XC)
Features
|
|
X-Monitoring |
X-Control |
|---|---|---|
|
Monitoring |
|
|
|
Power control (active and reactive power control) |
|
|
1) Status via multi/digital inputs are not included in the devices.
2) If the tracker mode is activated on the blue’Log, up to 250 devices can be queried instead of 100. In this case, no other device types can be configured except for the trackers, sensors (max. 10), and Status DI internal.
3) The meteocontrol master/slave functionality is used for plants with power control and more than one data logger. The blue’Log XM can be configured as a slave and thus transmit the power control setpoints to the connected inverters. See blue’Log XM slave data sheet.
Available licenses
|
Installed power
|
X-Monitoring |
X-Control |
|---|---|---|
|
≤ 200 kW |
532.010 blue’Log XM-200 |
532.020 blue’Log XC-200 |
|
≤ 1,000 kW |
532.011 blue’Log XM-1000 |
532.021 blue’Log XC-1000 |
|
≤ 3,000 kW |
532.012 blue’Log XM-3000 |
532.022 blue’Log XC-3000 |
|
≤ 5,000 kW |
532.013 blue’Log XM-5000 |
532.023 blue’Log XC-5000 |
|
≤ 10,000 kW |
532.014 blue’Log XM-10000 |
532.024 blue’Log XC-10000 |
|
≤ 20,000 kW |
532.015 blue’Log XM-20000 |
532.025 blue’Log XC-20000 |
|
≤ 50,000 kW |
|
532.026 blue’Log XC-50000 |
|
≤ 100,000 kW |
|
532.027 blue’Log XC-100000 |
|
> 100,000 kW |
|
532.028 blue’Log XC-100000+ |
|
Project item
|
532.019 blue’Log XM-Utility |
532.029 blue’Log XC-Utility |
Extensions
-
The range of functions can be extended with licenses.
-
The available additional licenses can be found in the data sheet blue’Log XM/XC optional licenses.
Technical data
|
Power supply |
24 V DC |
|---|---|
|
Power consumption |
Typically 5 W / max. 80 W, incl. MX add-on module |
|
ESD protection |
Tested in accordance with DIN EN 61000-4-2 (4 kV contact discharge, 8 kV air discharge) |
|
Operating temperature |
-20 °C … 60 °C |
|
Storage and transport temperature |
-20 °C … 75 °C |
|
Protection class |
IP 20 |
|
Elevation |
max. 2,000 m |
|
Rel. air humidity |
max. 80 % |
|
Degree of soiling |
max. 2 |
|
Installation |
Top-hat rail (35 mm) and wall mounting |
|
Dimensions (H x W x D) |
110 x 146 x 63 mm (including side parts) |
|
Weight |
385 g |
|
Storage |
16 GB (> 100 days of data storage) |
|
Certification |
CE, UL E478072 |
Display / operation
|
Display |
1 (291 x 118 pixels) |
|---|---|
|
LED display |
3 |
|
Operating buttons / directional pad |
2 / 1 |
|
Reset button |
1 |
|
DIP switches (bus termination) |
3 (2 x RS485 / 1 x CAN) |
Interfaces
Communication
-
2 x RS485 (interface can be terminated individually)
-
1 x Ethernet (10/100 MBit)
Digital inputs
-
4 x digital inputs (mode configurable via software for each port)
-
The following options are available for each digital input:
|
Type |
Usage |
Range |
Precision |
Resolution |
|---|---|---|---|---|
|
Digital |
Wet contact |
24 V DC / 20 mA |
– |
– |
|
Meter |
S0 |
S0 compliant / max. 16 Hz |
– |
– |
Multi inputs
-
4 x multi inputs (mode configurable via software for each port)
-
The following options are available for each multi input:
|
Type |
Usage |
Range |
Precision |
Resolution |
|---|---|---|---|---|
|
Digital |
Wet contact |
5 V DC / 5 mA |
– |
– |
|
Meter |
S0 |
S0 compliant / max. 16 Hz |
– |
– |
|
Analog |
Voltage input |
0 … 10 V DC |
2 mV DC |
40 µV DC |
|
Analog |
Current input |
0 … 20 mA |
80 µA |
2 μA |
|
Analog |
Resistor (PT1000) |
600 … 1,800 Ω |
2 Ω |
0.5 Ω |
Digital outputs
-
4 x digital outputs (mode configurable via software for each port)
-
The following options are available for each digital output:
|
Type |
Usage – Open collector |
Range |
|---|---|---|
|
Digital |
Active high GND (0: 1 MΩ / 1: GND)
|
max. 24 V DC / max. 50 mA |
|
Digital |
Active low GND (0: GND / 1: 1 MΩ) |
max. 24 V DC / max. 50 mA |
|
Digital |
Active high 24 V (0: 1 MΩ / 1: 24 V DC)
|
24 V DC / max. 50 mA |
|
Digital |
Active low 24 V (0: 24 V DC / 1: 1 MΩ) |
24 V DC / max. 50 mA |
MX-Modules
-
The system can be expanded with additional interfaces by connecting MX add-on modules.
-
The following modules can be connected:
|
MX-Module RS485/422 |
max. 3 |
|---|---|
|
MX-Module Multi I/O |
max. 5 |
Drivers
Supported devices: Inverters, sensors, meters, string monitoring, batteries, trackers.
The blue’Log is shipped with all device drivers available at the time of production. These can be variably assigned to the corresponding interface on the blue’Log. The number of supported devices is constantly increasing.
You can find further information in the blue’Log XM/XC Compatibility check.
