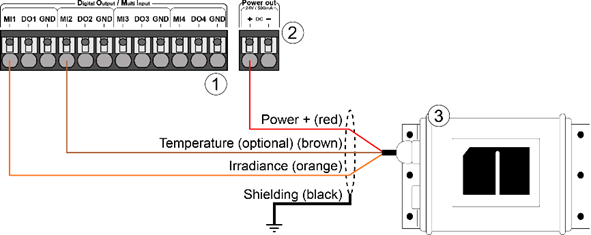

Si-V-010, Si-V-010-T, Si-I-420, Si-I-420-T (analog interface)

1

Data logger terminal, digital output/multi-input

2

Data logger terminal, Power Out

3

Irradiance sensor

Red

Power supply (12 … 28 V DC)

Brown

Temperature signal (0 … 10 V / 0 … 20 mA / 12.28 … 20 mA)

Orange

Irradiance signal (0 … 10 V / 0 … 20 mA / 4 … 20 mA)

Black (thick)

Shielding

Si-V-010

Irradiance

Analog 0 … 10 V

W/m²

150

0

Si-V-010-T

Irradiance

Analog 0 … 10 V

W/m²

150

0

Temperature

Analog 0 … 10 V

°C

13

-40

Si-V-420

Irradiance

Analog 4 … 20 mA

W/m²

93.75

-375

Si-V-420-T

Irradiance

Analog 4 … 20 mA

W/m²

93.75

-375

Temperature

Analog 4 … 20 mA

°C

8.125

-72.5

Si-V-010

423.039, 423.040, 423.041

Si-V-010-T

423.042, 423.043, 423.044

Si-I-420

423.145, 423.146, 423.147

Si-I-420-T

423.048, 423.049, 423.050
