Wind direction sensors

1

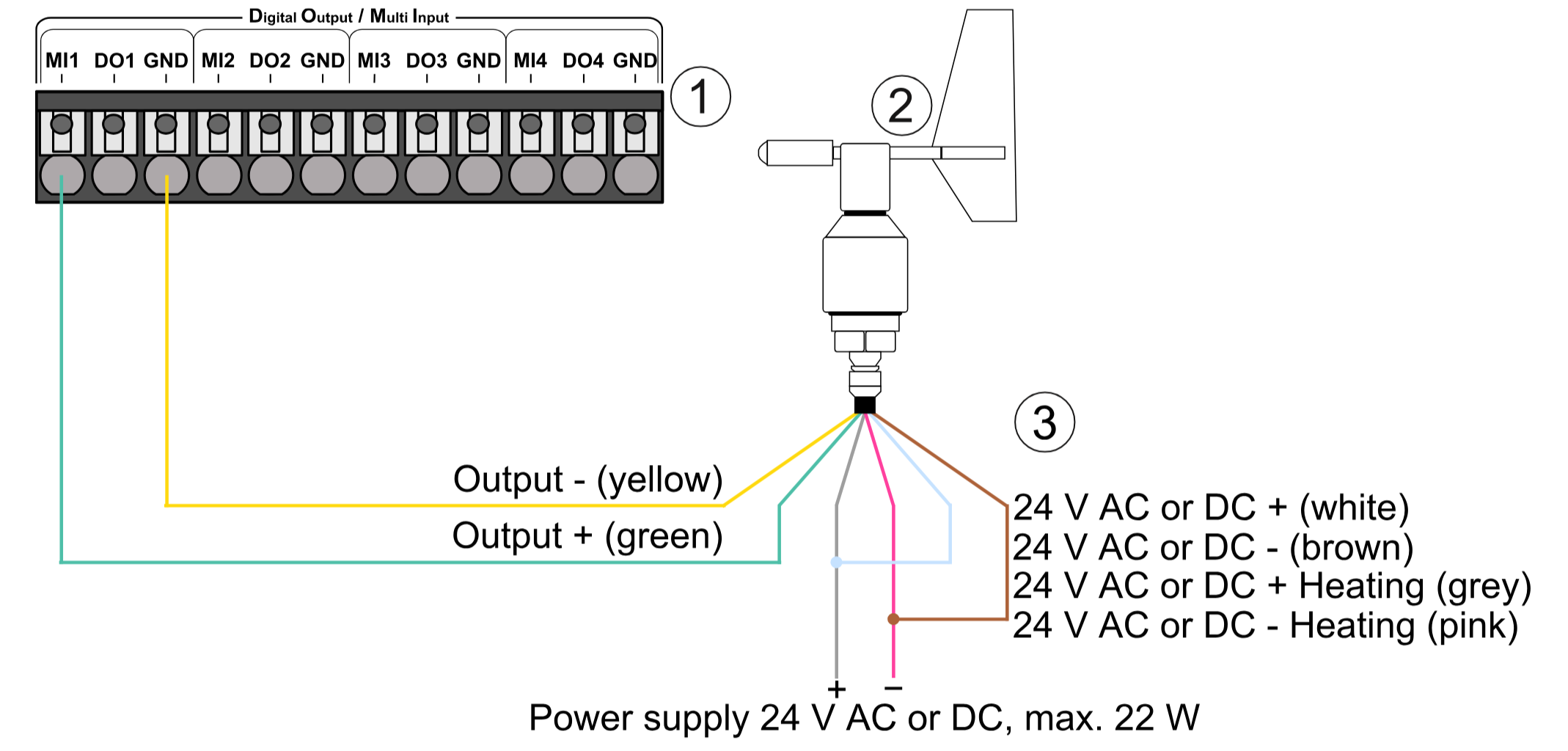

Data logger terminal, digital output / multi-input

2

Wind direction sensor

3

Sensor power supply

Yellow

Wind direction signal GND

Green

Wind direction signal (4 … 20 mA)

Gray

Heating power supply (24 V AC or DC +)

Pink

Heating GND (24 V DC −)

White

Sensor power supply (24 V AC or DC +)

Brown

Sensor GND (24 V AV or DC −)

mc compact wind direction (0 … 10 V)

Wind direction

Analog 0 … 10 V

°

36

0

mc compact wind direction (4 … 20 mA)

Wind direction

Analog 4 … 20 mA

°

22.5

-90

mc compact wind direction sensor

423.411
