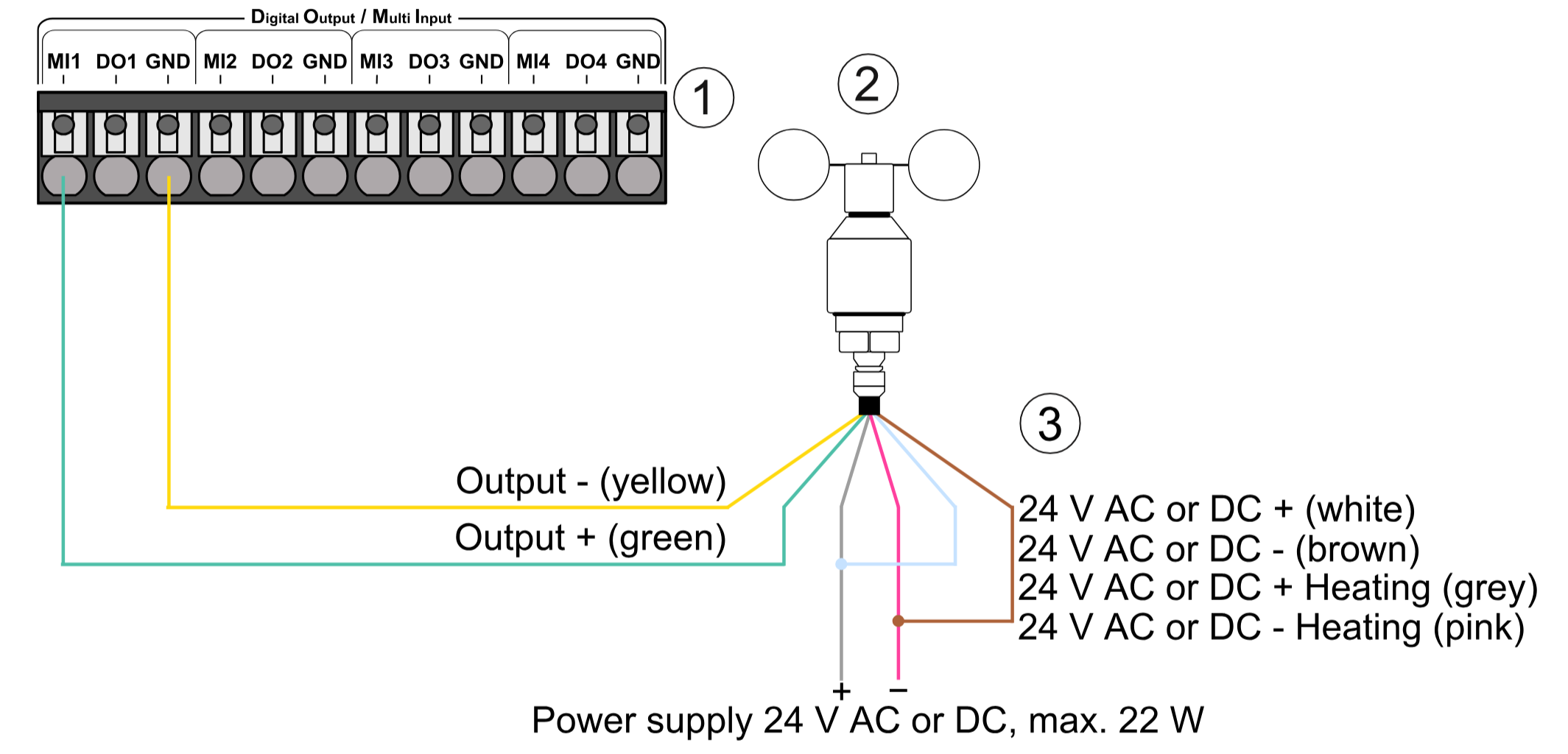

Wind speed sensors

1

Data logger terminal, digital output / multi-input

2

Wind speed sensor

3

Sensor power supply

Yellow

Wind speed signal ground

Green

Wind speed signal (4 … 20 mA)

Gray

Heating power supply (24 V DC +)

Pink

Heating GND (24 V DC −)

White

Sensor power supply (24 V DC +)

Brown

Sensor GND (24 V DC −)

mc comp. wind speed sensor (0 … 10 V)

Wind speed

Analog 0 … 10 V

m/s

5

0

mc comp. wind speed sensor (4 … 20 mA)

Wind speed

Analog 4 … 20 mA

m/s

3.09

-11.86

mc compact wind speed sensor

423.412
