mc compact hygro-thermal sensor
-
At a supply voltage of 24 V DC at the sensor, the load resistance (cable + input resistance data logger) should be between 600 and 700 Ω to obtain the best measurement results.
-
The input resistance of the data logger is 40 Ω.
-
The installation of an additional resistance (approx. 500 Ω) improves the measurement accuracy of the sensor.
|

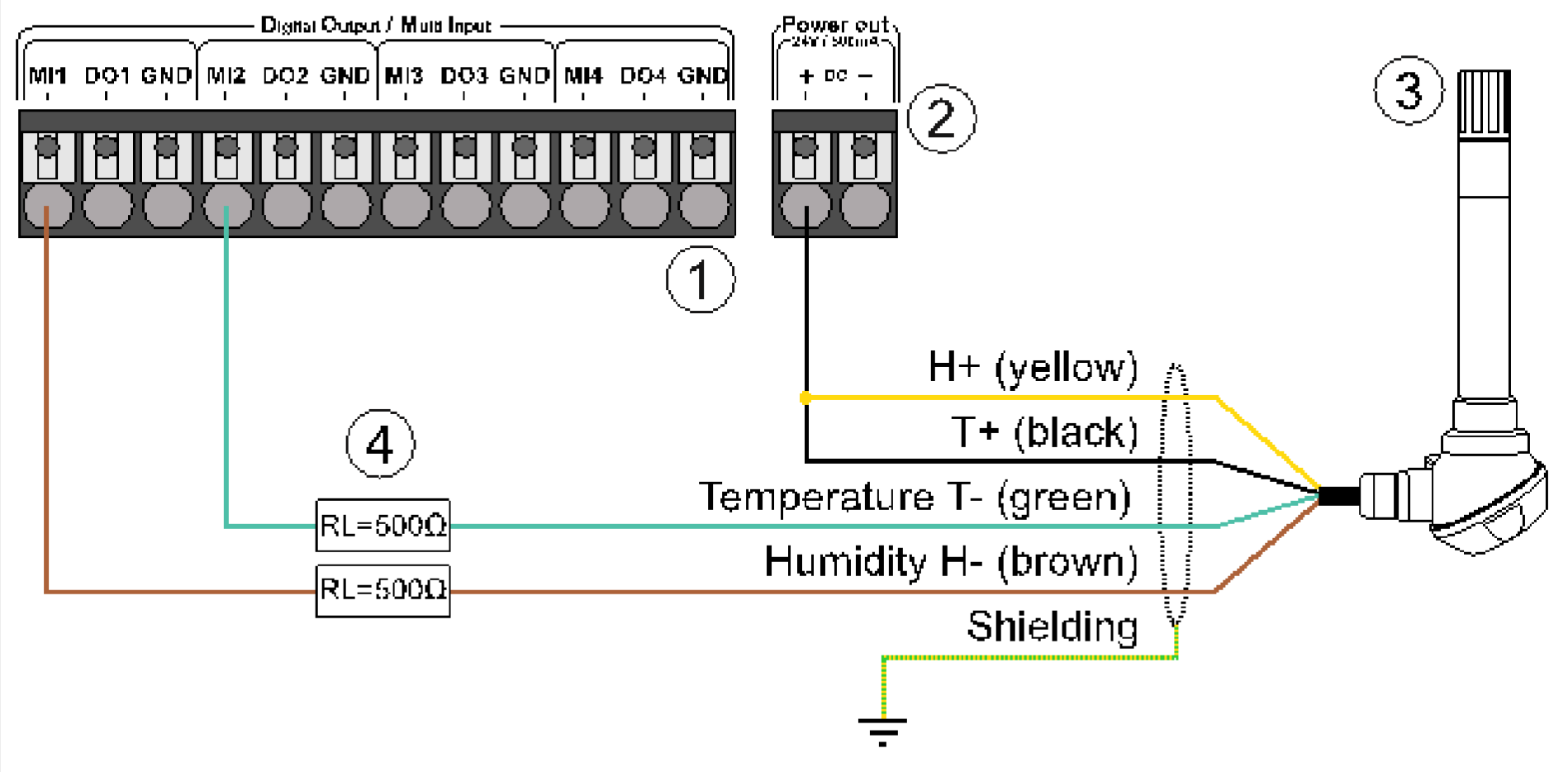

Description |
|
|---|---|
|
1 |
Data logger terminal, digital output / multi-input |
|
2 |
Data logger terminal, Power Out |
|
3 |
Hygro-thermal sensor |
|
4 |
Load resistor |
Connection
|
Wire color |
Use |
|---|---|
|
|
Ambient air humidity power supply (24 V DC) |
|
|
Temperature power supply (24 V DC) |
|
|
Temperature signal (4 … 20 mA) |
|
|
Ambient air humidity signal (4 … 20 mA) |
Configuration data
|
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|
|
Temperature |
Analog 4 … 20 mA |
°C |
6.25 |
-55 |
|
Ambient air humidity |
Analog 4 … 20 mA |
% r. h. |
6.25 |
-25 |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
mc compact hygro-thermal sensor |
423.309 |
