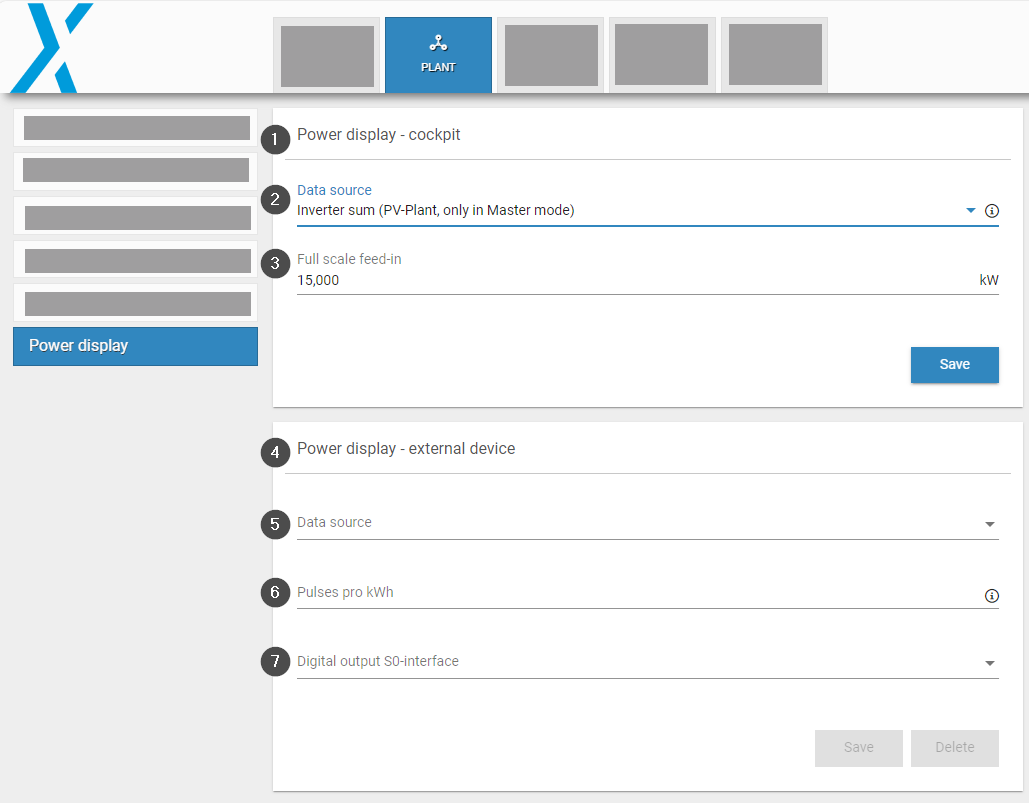

The following graphic illustrates the functions that can be carried out under Plant > Power display.
|
Item |
Name |
Details |
|---|---|---|
|
1 |
Power display - cockpit |
The data source that is displayed under Cockpit |
|
2 |
Data source |
Total AC power of:
|
|
3 |
Full-scale feed-in |
Maximum feed-in of the system |
|
4 |
Power display - external device |
Data source that is displayed via an external device, such as a screen or other display device |
|
5 |
Data source |
Total AC power of:
|
|
6 |
Pulses pro kWh |
Enter a pulse constant such that the maximum pulse rate of 10 Hz is not exceeded |
|
7 |
Digital output S0-interface |
Select available values (values that are not already assigned) |
