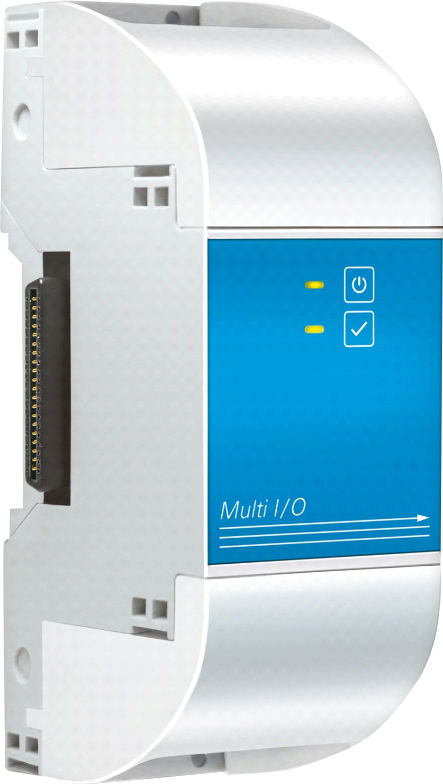

MX-Module Multi I/O
Item no. 538.301
Description
Extends the blue'Log XM/XC with additional digital and analog ports.
Technical data
|
Power supply |
System internal |
|---|---|
|
Power consumption |
Typically 3 W (depends on configuration) |
|
Operating temperature |
-20 °C … 55 °C |
|
Storage and transport temperature |
-20 °C … 70 °C |
|
Protection class |
IP 20 |
|
Installation |
Wall mounting, top-hat rail installation in electrical distribution board, in control cabinets |
|
Dimensions (H x W x D) |
36 x 110 x 63 mm (including side parts) |
|
Weight |
100 g |
Display/operation
|
LED |
2 |
|---|
Interfaces
Multi inputs
-
4 x digital/analog inputs (mode configurable via software for each port)
-
The following options are available for each multi input:
|
Type |
Usage |
Range |
Precision |
Resolution |
|---|---|---|---|---|
|
Digital |
Wet contact |
5 V DC / 5 mA |
– |
– |
|
Meter |
S0 |
S0 compliant / max. 16 Hz |
– |
– |
|
Analog |
Voltage input |
0 … 10 V DC |
2 mV DC |
40 µV DC |
|
Analog |
Current input |
0 … 20 mA |
80 µA |
2 μA |
|
Analog |
Resistor (PT1000) |
600 … 1,800 Ω |
2 Ω |
0,5 Ω |
Digital outputs
-
4 x digital outputs (mode configurable via software for each port)
-
The following options are available for each digital output:
|
Type |
Usage – Open collector |
Range |
|---|---|---|
|
Digital |
Active high GND (0: 1 MΩ / 1: GND)
|
max. 24 V DC / max. 50 mA |
|
Digital |
Active low GND (0: GND / 1: 1 MΩ) |
max. 24 V DC / max. 50 mA |
|
Digital |
Active high 24 V (0: 1 MΩ / 1: 24 V DC)
|
24 V DC / max. 50 mA |
|
Digital |
Active low 24 V (0: 24 V DC / 1: 1 MΩ) |
24 V DC / max. 50 mA |
