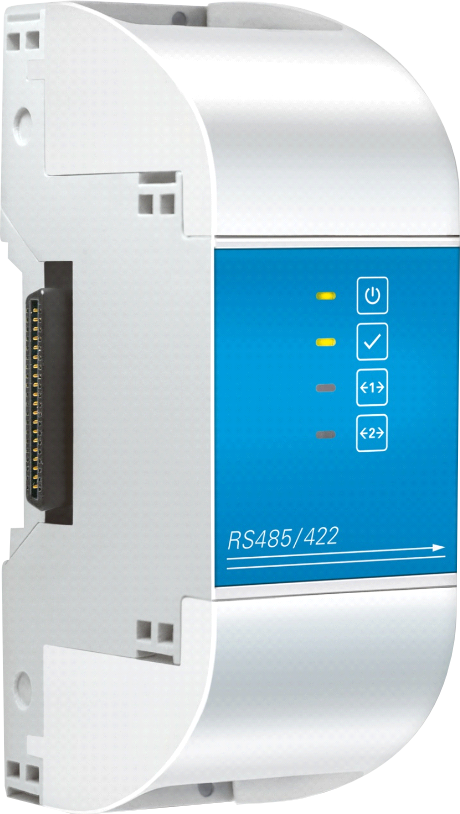

MX-Module RS485/422
Item no. 538.202
Description
Extends the blue'Log XM/XC with two additional RS485/422 interfaces.
Technical data
|
Power supply |
System internal |
|---|---|
|
Power consumption |
typically ~ 1 W (dependent on configuration) |
|
Bus termination |
set permanently |
|
Operating temperature |
-20 °C … 70 °C |
|
Storage and transportation temperature |
-20 °C … 85 °C |
|
Protection class |
IP 20 |
|
Installation |
Wall mounting, top-hat rail installation in electrical distribution board, in control cabinets |
|
Dimensions (H x W x D) |
36 x 110 x 63 mm |
|
Weight |
97 g |
Display/operation
|
LED |
4 |
|---|
Interfaces
RS485/422
-
2 x (autodetection, Baudrate 1200 – 115200 Baud)
