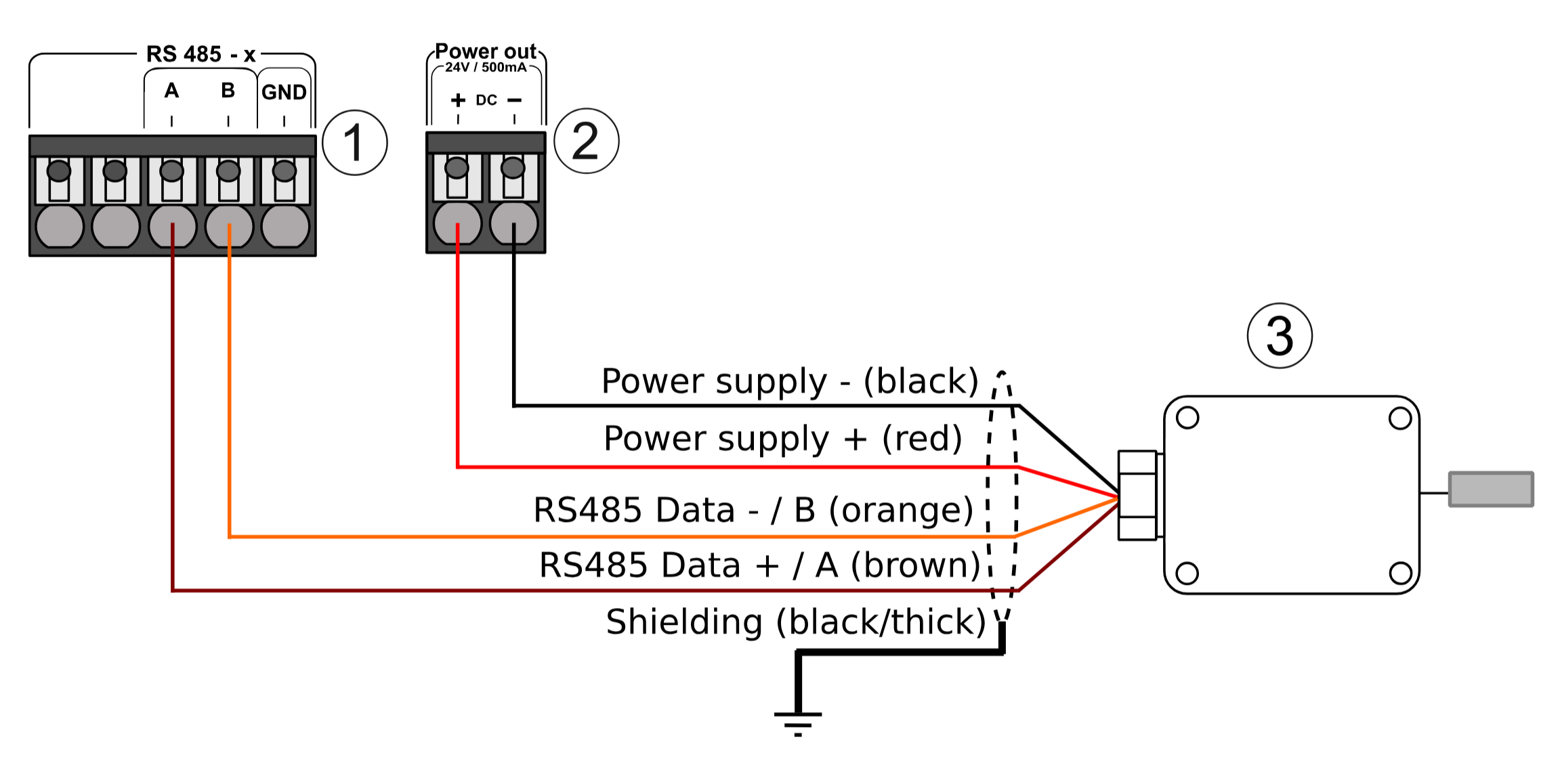

Set the bus address on the sensor (see sensor documentation).
-
If the device is the last one on the RS485 bus, terminate the bus with a 120 Ω terminating resistor.
-
Various Modbus devices can only be queried together if the serial communication parameters are identical (baud rate, number of data bits, parity, stop bits).
|
Description |
|
|---|---|
|
1 |
Data logger terminal, RS485 |
|
2 |
Data logger terminal, Power Out |
|
3 |
Sensor Tm-RS485-MB |
Connection
|
Wire color |
Use |
|---|---|
|
|
Power supply − |
|
|
Power supply + (10 … 28 V DC) |
|
|
RS485 Modbus interface B (−) |
|
|
RS485 Modbus interface A (+) |
|
|
Shielding |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
Tm-RS485-MB |
423.222 |
Download PDF
blue'Log XM_XC_Tm-RS485-MB module temperature sensor (Modbus RTU)_LastMod-2026-08-11_en.pdf
