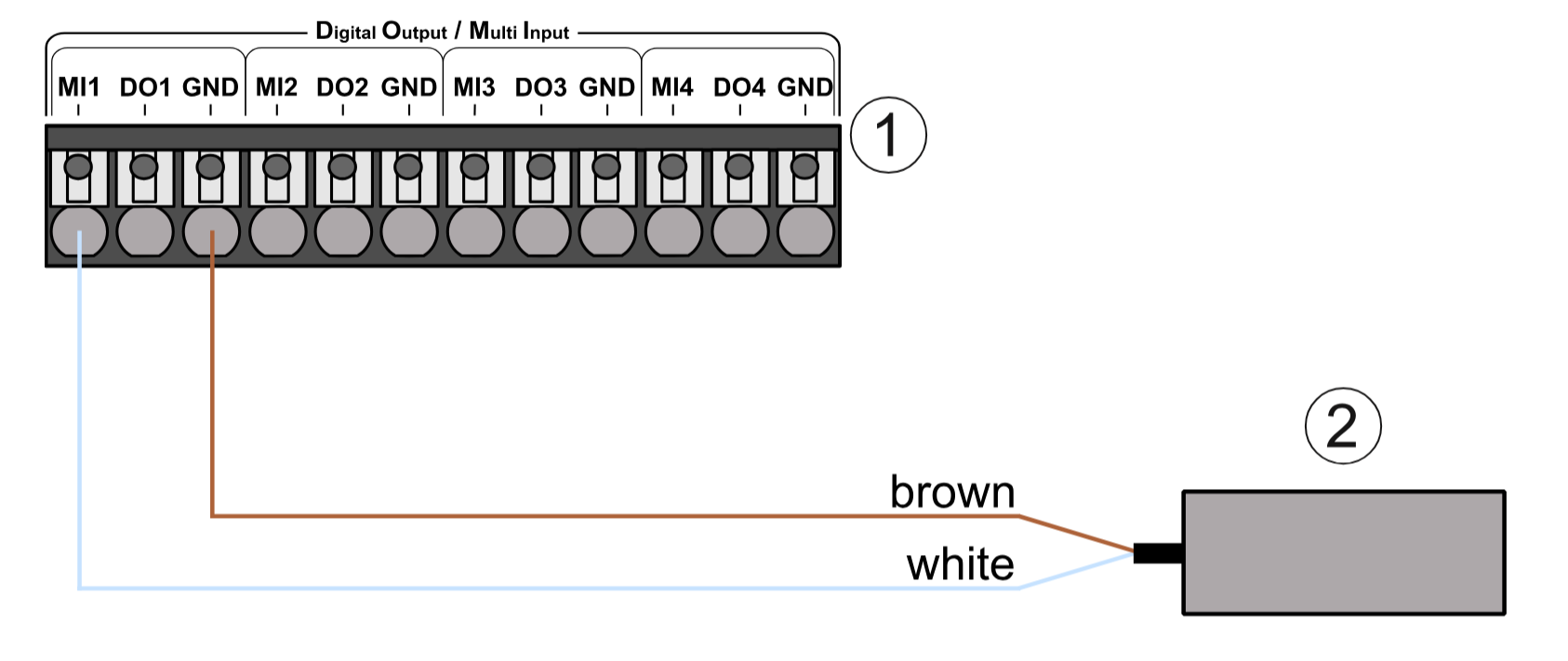

Description |
|
|---|---|
|
1 |
Data logger terminal, digital output / multi-input |
|
2 |
PT1000 temperature sensor |
Connection
|
Wire color |
Use |
|---|---|
|
Brown |
Ground |
|
White |
PT1000 temperature signal |
Configuration data
|
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|
|
Temperature |
PT1000 |
°C |
1 |
0 |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
PT1000 (adhesive) |
200.315 |
Download PDF
blue'Log XM_XC_PT1000 adhesive sensor_LastMod-2026-08-11_en.pdf
