Kipp & Zonen CMP3, CMP6, CMP11, CMP21, CMP22 with AMPBOX
Last modified:
Pyranometers can be used to measure irradiance either in horizontal or module plane.
Input and output of the AMPBOX are galvanically isolated to prevent back coupling, signal interferences, and to protect the data logger.
The connecting cable between the AMPBOX and the pyranometer must not be lengthened or shortened.
Because the AMPBOX and the pyranometer are calibrated together, both devices must always be installed together.

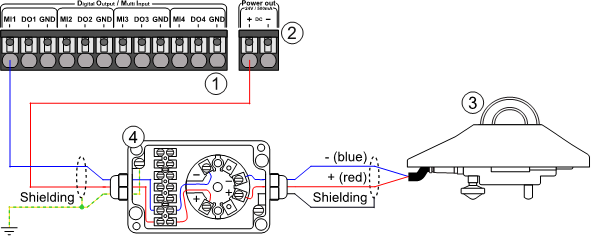

Kipp & Zonen CMP3, CMP6, CMP11, CMP21, CMP22 with AMPBOX: Sensor connection
Description | |
|---|---|
| 1 | Data logger terminal, digital output/multi-input |
| 2 | Data logger terminal, Power Out |
| 3 | Pyranometer |
| 4 | AMPBOX |
Connection
Wire color | Use |
|---|---|
Blue | - (High) |
Red | + (Low) |
Configuration data
Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|
Irradiance on horizontal plane | Analog 4…20 mA | W/m2 | 100 | -400 |
Irradiance on module plane | Analog 4…20 mA | W/m2 | 100 | -400 |
