Hukseflux SR20-D1 (Modbus RTU)
Last modified:
Set the bus address on the sensor (see sensor documentation).
If the device is the last one on the RS485 bus, terminate the bus with a 120 Ω terminating resistor.
Various Modbus devices can only be queried together if the serial communication parameters are identical (baud rate, number of data bits, parity, stop bits).
Pyranometers can be used to measure irradiance either in horizontal or module plane.

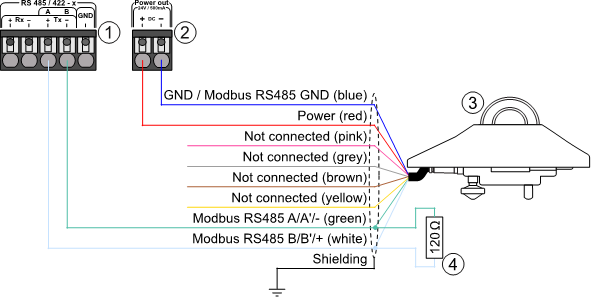

Hukseflux SR20-D1 (Modbus RTU): Sensor connection
Description | |
|---|---|
| 1 | Data logger terminal, RS485 |
| 2 | Data logger terminal, Power Out |
| 3 | Pyranometer |
| 4 | Terminating resistor |
Connection
Wire color | Use |
|---|---|
Blue | GND / RS485 Modbus interface GND |
Red | Power supply (5 … 30 V DC) |
Pink | Not used |
Gray | Not used |
Brown | Not used |
Yellow | Not used |
Green | RS485 Modbus interface B (-) |
White | RS485 Modbus interface A (+) |
Black | Shield |
