PT1000 sensor with integrated inverter
Last modified:
PT1000 sensor with integrated inverter: Sensor connection

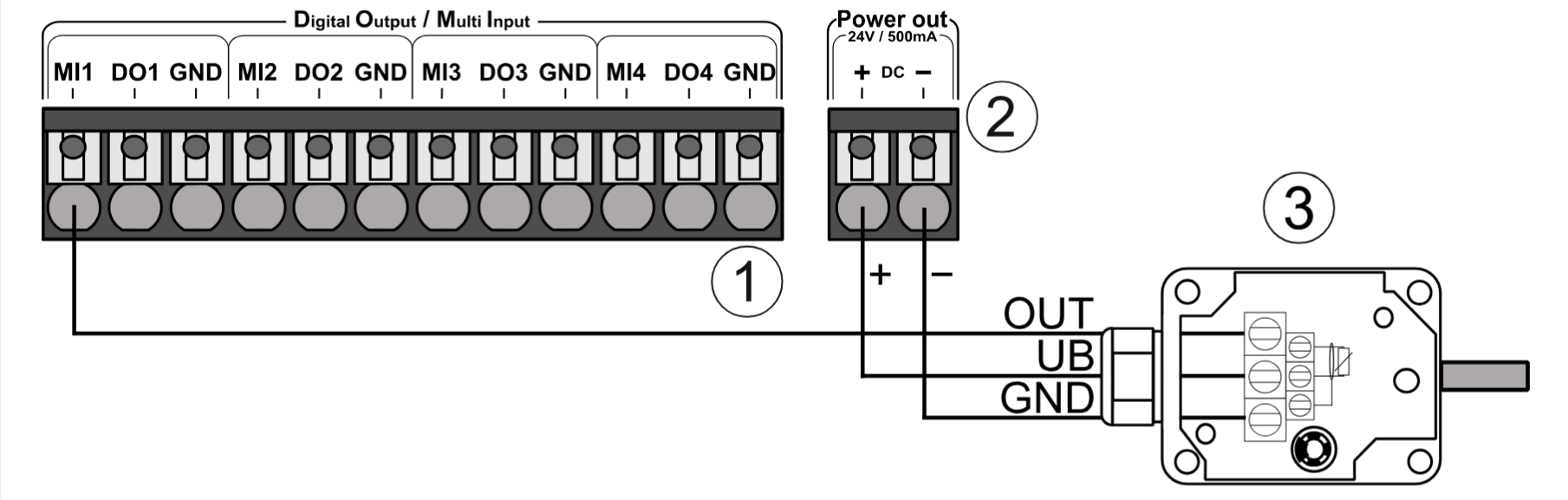

Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Data logger terminal, Power Out |
| 3 | PT1000 sensor with integrated inverter |
Connection
Wire | Use |
|---|---|
OUT | PT1000 temperature signal |
UB | Supply voltage (15…24 V DC or 24 V AC) |
GND | Ground |
Configuration data
Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|
Temperature | PT1000 | °C | 1 | 0 |
