meteocontrol classic wind speed sensor (0...10 V) / (4...20 mA)
Last modified:
meteocontrol compact wind speed sensor

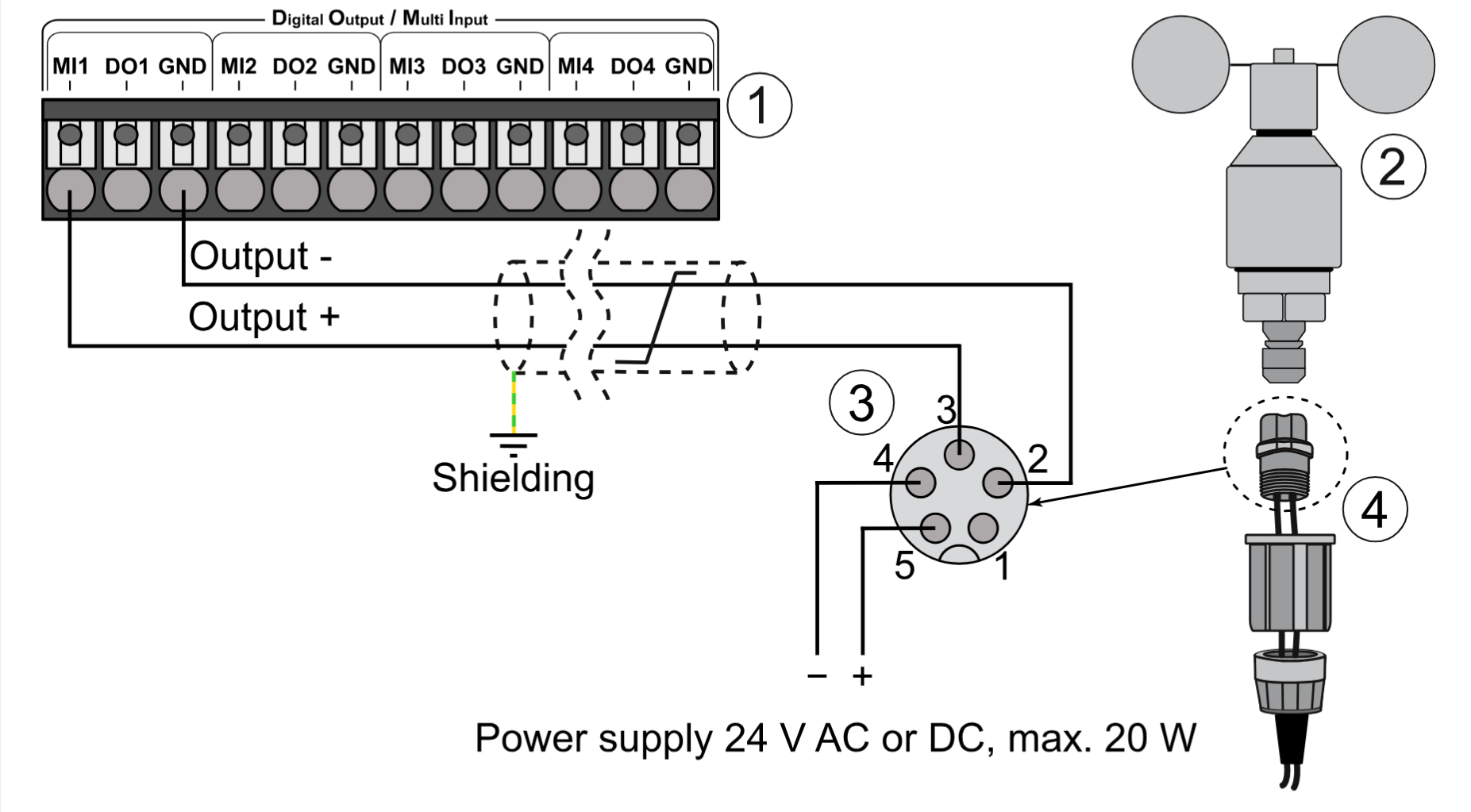

Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Wind speed sensor |
| 3 | Sensor connector assignment |
| 4 | Sensor connector |
Configuration data
Sensor | Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|---|
mc classic wind speed sensor (0-10 V) | Wind speed | Analog 0 … 10 V | m/s | 5 | 0 |
mc classic wind speed sensor (4-20 mA) | Wind speed | Analog 4 … 20 mA | m/s | 3.125 | -12,5 |
