blue'Log XM slave

blue’Log XM slave

Item no. 532.018


Description

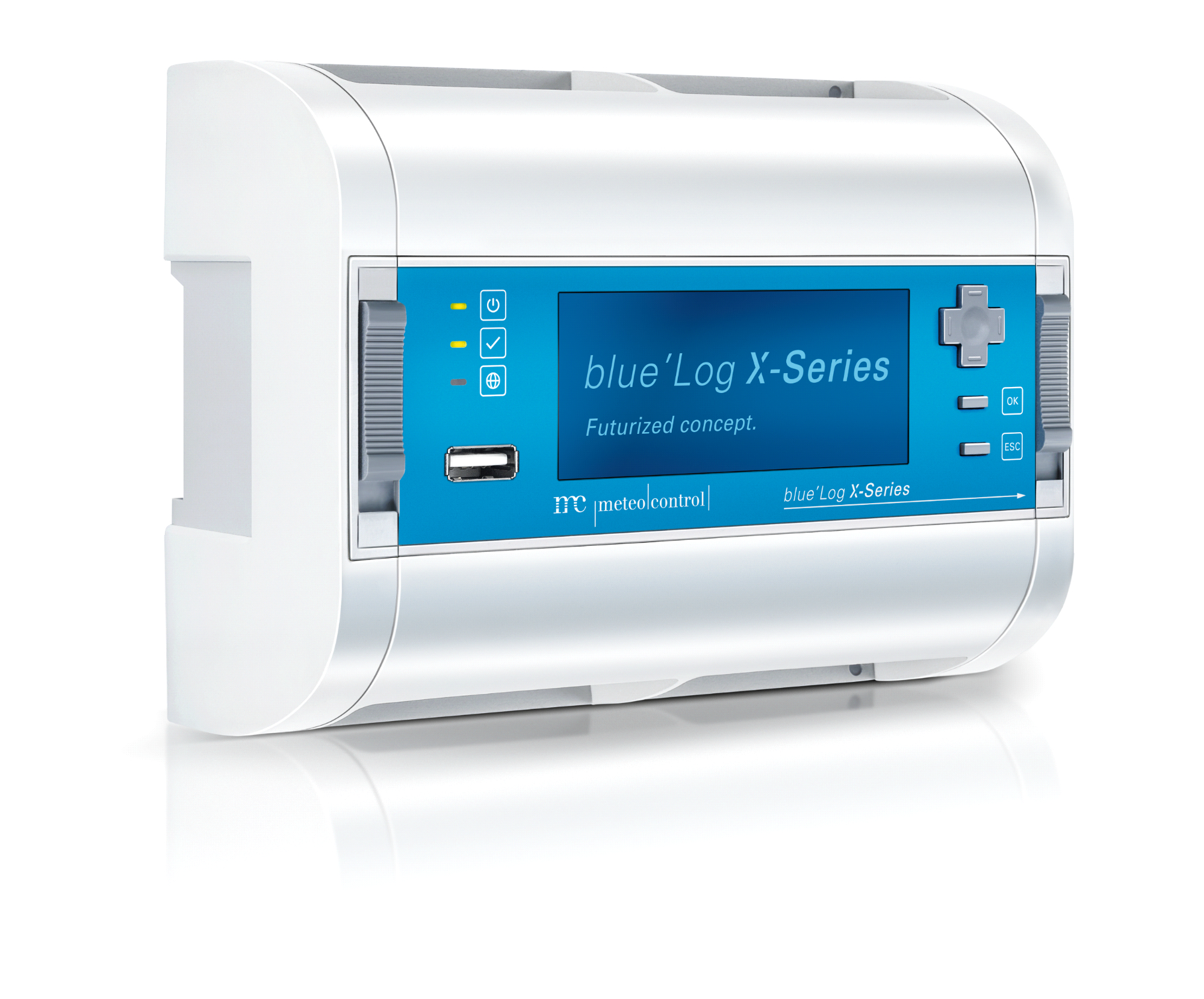

The blue'Log XM slave collects all data of your PV plant and serves as a gateway for VCOM Cloud and Local SCADA Center. In addition, the device acts as the interface for the blue'Log XC power plant controller to all controllable units (inverters) at the plant.

Note

The blue’Log XM slave can only be ordered as part of a project offer.

Features

  • Processing of up to 100 devices 1)

  • Processing of up to 250 trackers 2)

  • Can be used for systems of any performance class

  • Measured values in 1-minute interval

  • At least 100 days of data storage (long-term storage in VCOM Cloud or Local SCADA)

  • Automatic forwarding of data in case of disconnection

  • Sending of historical data (at least 100 days in the past)

  • Compatible with more than 3,300 devices. See Compatibility Check.

1) Exception: Status via multi/digital inputs are not included in the devices.
2) If the tracker mode is activated on the blue’Log, up to 250 devices can be queried instead of 100. In this case, no other device types can be configured except for the trackers, sensors (max. 10), and Status DI internal.

Extensions

Technical data

Power supply

24 V DC

Power consumption

Typically 5 W / max. 80 W, incl. MX add-on module

ESD protection

Tested in accordance with DIN EN 61000-4-2 (4 kV contact discharge, 8 kV air discharge)

Operating temperature

-20 °C … 60 °C

Storage and transport temperature

-20 °C … 75 °C

Protection class

IP 20

Elevation

max. 2,000 m

Rel. air humidity

max. 80 %

Degree of soiling

max. 2

Installation

Top-hat rail (35 mm) and wall mounting

Dimensions (H x W x D)

110 x 146 x 63 mm (including side parts)

Weight

385 g

Storage

16 GB (> 100 days of data storage)

Display / operation

Display

1 (291 x 118 pixels)

LED display

3

Operating buttons / directional pad

2 / 1

Reset button

1

DIP switches (bus termination)

3 (2 x RS485 / 1 x CAN)

Interfaces

Communication
  • 2 x RS485 (interface can be terminated individually)

  • 1 x Ethernet (10/100 MBit)

  • 1 x CAN

Digital inputs
  • 4 x digital inputs (mode configurable via software for each port)

  • The following options are available for each digital input:

Type

Usage

Range

Precision

Resolution

Digital

Wet contact

24 V DC / 20 mA

Meter

S0

S0 compliant / max. 16 Hz

Multi inputs
  • 4 x multi inputs (mode configurable via software for each port)

  • The following options are available for each multi input:

Type

Usage

Range

Precision

Resolution

Digital

Wet contact

5 V DC / 5 mA

Meter

S0

S0 compliant / max. 16 Hz

Analog

Voltage input

0 … 10 V DC

2 mV DC

40 µV DC

Analog

Current input

0 … 20 mA

80 µA

2 μA

Analog

Resistor (PT1000)

600 … 1,800 Ω

2 Ω

0,5 Ω

Digital outputs
  • 4 x digital outputs (mode configurable via software for each port)

  • The following options are available for each digital output:

Type

Usage – Open collector

Range

Digital

Active high GND (0: 1 MΩ / 1: GND)
(Firmware < 16.0.5 Active low)

max. 24 V DC / max. 50 mA

Digital

Active low GND (0: GND / 1: 1 MΩ)

max. 24 V DC / max. 50 mA

Digital

Active high 24 V (0: 1 MΩ / 1: 24 V DC)
(Firmware < 16.0.5 Active high)

24 V DC / max. 50 mA

Digital

Active low 24 V (0: 24 V DC / 1: 1 MΩ)

24 V DC / max. 50 mA

MX-Modules

  • The system can be expanded with additional interfaces by connecting MX add-on modules.

  • The following modules can get connected:

MX-Module RS485/422

max. 3

MX-Module Multi I/O

max. 5
