WEB'log - Check power control

Note

This product has been discontinued and is no longer maintained.

WEB'log series

WEB’log series

How to test the PowerControl control on the WEB'log without radio ripple control receiver:

  1. The control levels must already have been configured under Admin Measurement -> Power Control -> General Configuration.

  2. The PowerControl control must be activated, the control type set to P (DI) internal (when used with PCU + to P (DI)).

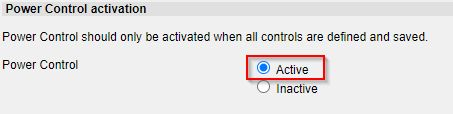

Power control activation

Power control activation

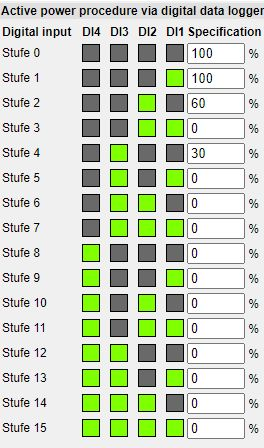

Active power procedure

Active power procedure

  1. Pull out the connection block of the digital channels.

  2. Depending on the control level, bridge the channel between + and -

  3. The control level is now switched and the inverters have to be adjusted accordingly - the control level is also shown in the display

Note

There are 24 V on the DI channels at the + pin.
