KACO blueplanet TL series (KACO direct)

Last modified:


Set up KACO blueplanet TL series (KACO direct)

KACO inverters of the blueplanet TL series can send data directly to VCOM via KACO Direct.

📗

General tips

  • Have the data source (data logger, etc.) serial number on hand. When entering the serial number, pay attention to uppercase and lowercase letters and empty spaces.

  • The data source name can be freely selected. For recommendations, see our Naming guideline.

  • Set the same measuring interval for all data sources in the system to ensure charts are accurately displayed in VCOM. This is used to normalize uneven timestamps and aggregate smaller recorded intervals into larger ones.

  • To ensure that the data source measuring interval has been set correctly in VCOM, open an imported file in the Data logger overview portlet in VCOM and check the timestamps.

  • We recommend ticking the check box Automatic device creation to ensure that VCOM automatically creates any new devices found during each data import.

  • If possible, perform a connection test once you have completed the configuration in both VCOM and the data source.

Data loggers only

  • For data loggers, update the firmware to the latest version prior to configuration.

  • For data loggers, any import that uses FTP can also use SFTP. The access data, such as the FTP server address, user name, and password remain identical. Only the port changes from port 21 (FTP) to port 2222 (SFTP).

APIs only

  • Each day at midnight, VCOM checks for complete data and requests data from the past 7 days. If there are no limitations from the API and the data is available, the gaps will be filled.


Configuration details

Protocol

REST API

File format

CSV

Measuring interval

5 min

Server

www1.meteocontrol.de

Port

80 or 443


Configuration: Inverter

  • Enable data transfer to meteocontrol


Configuration: Data logger

  1. Connect the inverter to an internet router via the LAN cable and ensure the inverter is connected to the internet.

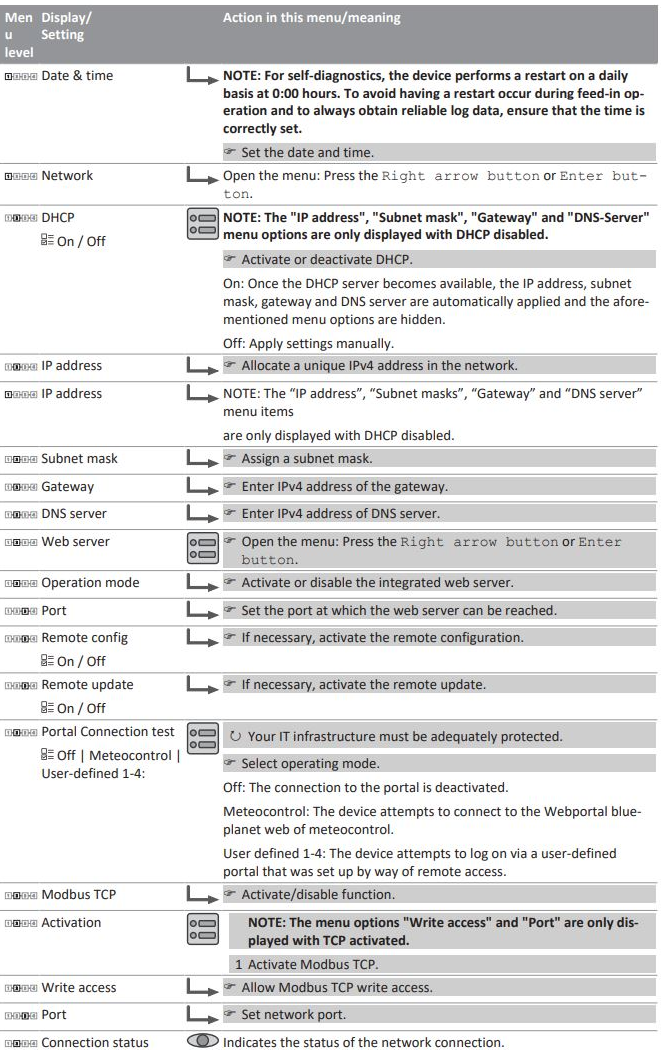

  2. Configure the inverter via the KACO web interface. See the manufacturer documentation.

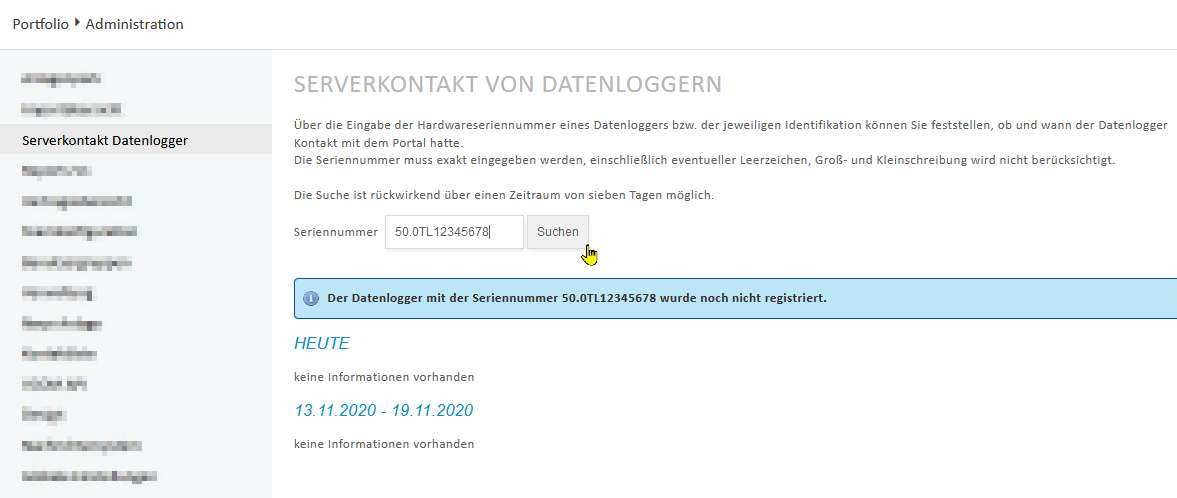

  3. When the network setup is complete, perform a connection test.


Configuration: VCOM

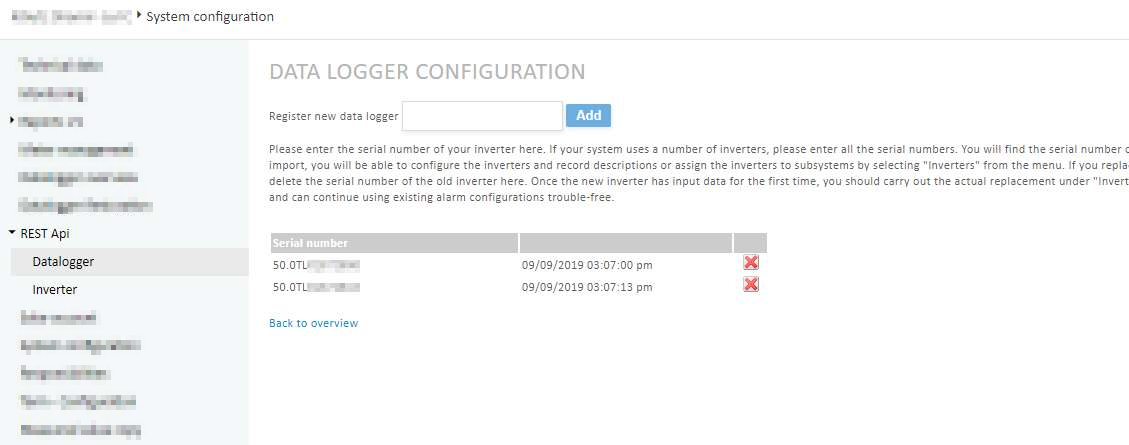

  • In VCOM under Data logger configuration, add KACO direct as the device type.

  • Enter the inverter serial number correctly, for example 50.0TLXXXXXXX

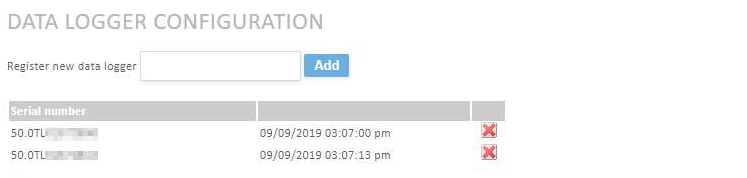

KACO direct configuration


Troubleshooting: Missing data in VCOM

The interval column has incorrect data:

  • The inverter sends only one file per day

  • The data file is empty

  • Incorrect time stamp in the data file

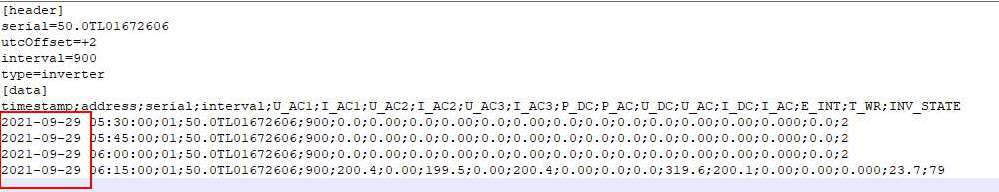

troubleshooting kaco direct-20241108-125916.png
Example of missing data: incorrect timestamp

  • The inverter does not establish a connection to meteocontrol



Note

If you have questions, contact KACO support at service@kaco-newenergy.de
