Chart

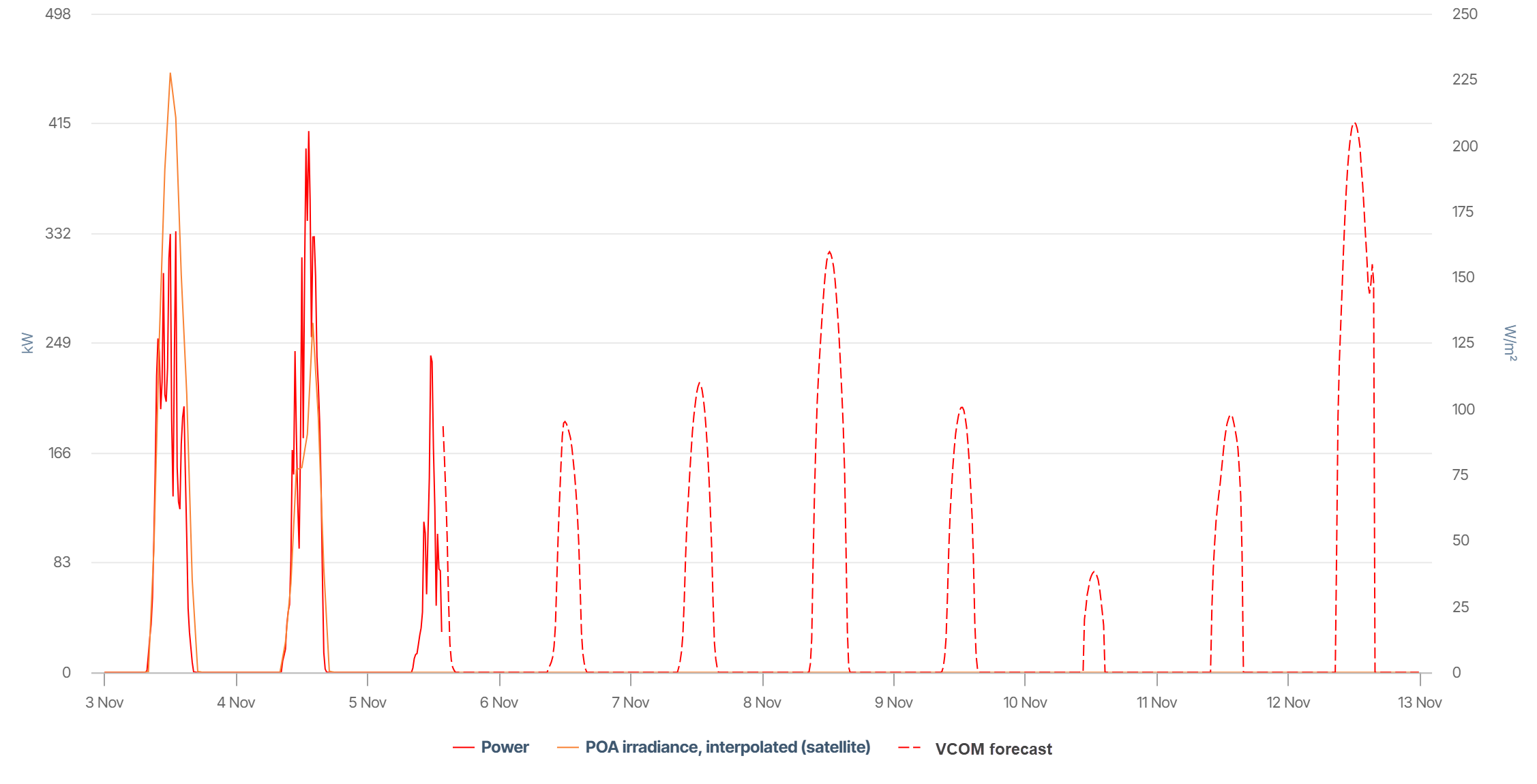

The chart shows:
-
Dotted lines: Forecasted power in kW for a 7-day horizon (here: 6-13 November).
-
For comparison, you can see the actual power in kW (red line) and POA irradiance (yellow line), in this case for 3-5 November.
Basic info
|
Description |
The chart displays the forecasted active power generation according to the VCOM forecast. The forecast is displayed from the current day for the next 7 days and is updated in 15-minute intervals. The chart also displays real-time measurements of the actual power and satellite irradiance. |
|---|---|
|
Prerequisites |
|
|
Further details |
The intervals displayed may deviate for data sources with faster or slower transmission intervals. See VCOM forecast for technical details. |
View historic values
To view historic forecast values, you can create a user-defined chart. This allows you, for example, to evaluate the deviation between the VCOM forecast, actual power values, and other parameters.
Prerequisites
-
VCOM forecast has been activated in VCOM for the relevant system(s).
-
“Create” permission for the Evaluation module. See User group modules and permissions.
Steps
-
Create a term using the abbreviation FORECAST_POWER. See Terms.
-
The forecast term you created should now be visible in the user-defined charts in the category Sensoric/Calculated.
-

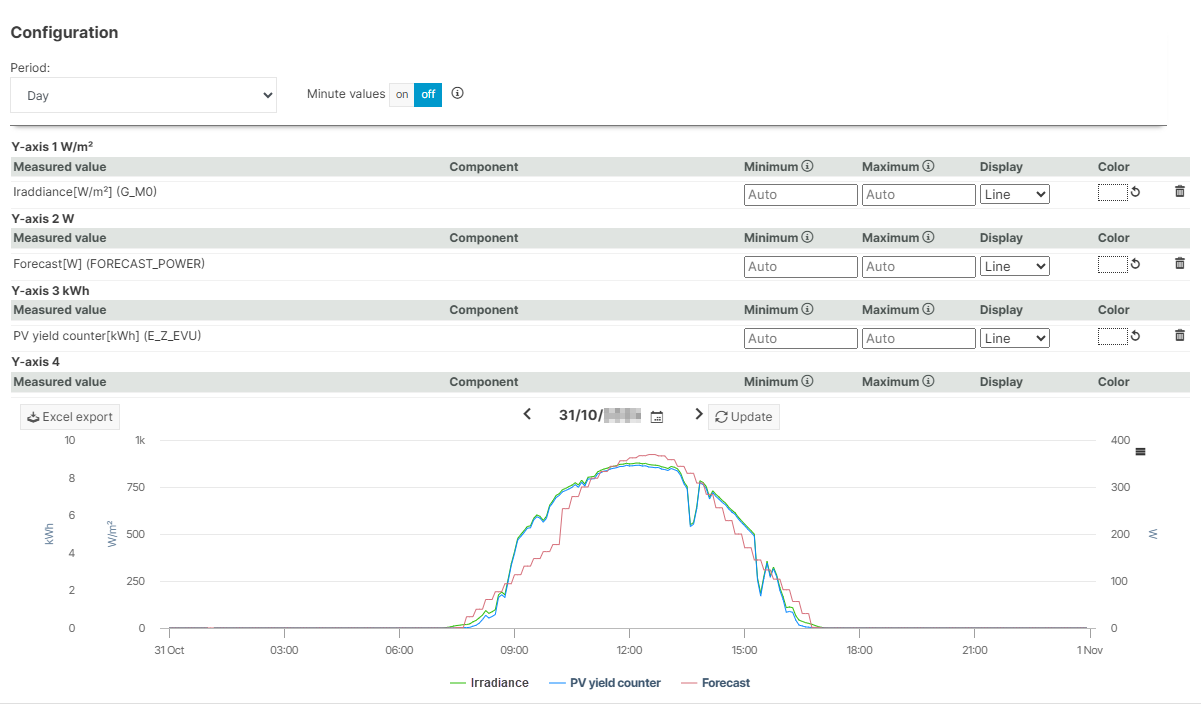

Create a user-defined chart with the desired values, e.g. actual active power and sensor irradiance values. See Create and save user-defined charts with the chart generator.

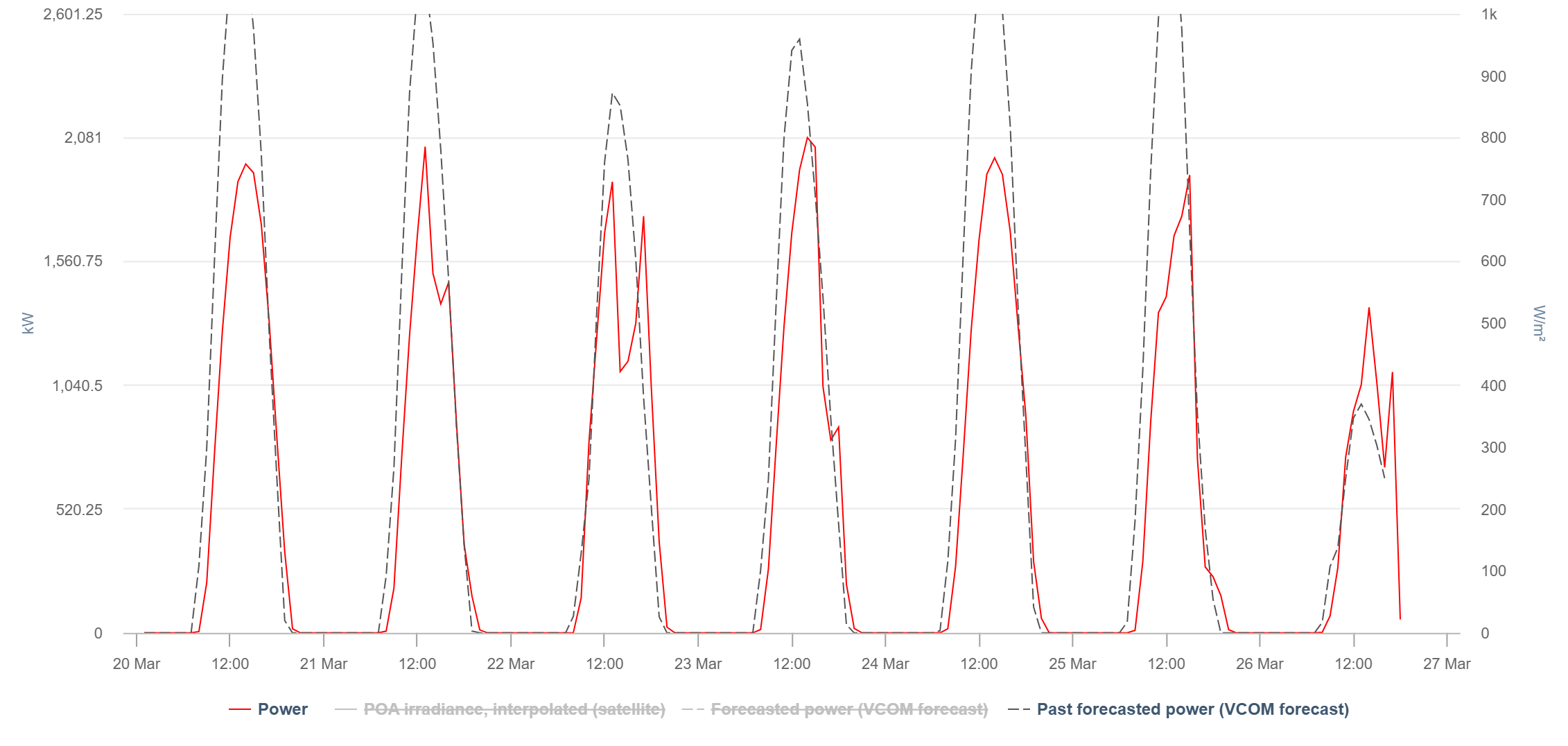

Your chart containing historic data is now displayed in the Evaluation area of VCOM.
Note
Find further information on the general functions within charts under Evaluations & charts.
