DC current (normalized) chart for inverter inputs

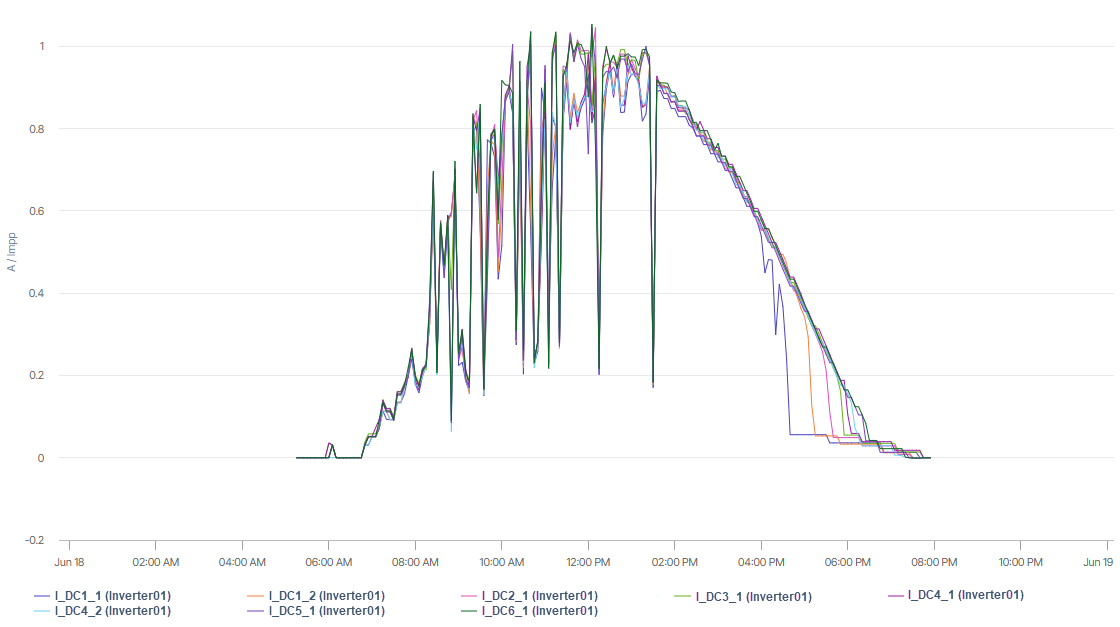

The DC current (normalized) chart for inverter inputs allows you to monitor the normalized DC current of each string of each inverter’s MPPT individually.

• For systems with string inverter inputs, the chart will automatically appear in the section Inverter inputs.

• The chart is not available for systems with string combiner boxes.

• You set up a subsystem that includes the inverters you want to be displayed in the chart. See Set up a subsystem.

• All inverter inputs strings you want to be displayed are activated. Activate or deactivate strings at SYSTEM LEVEL under System configuration > Data sources.

• Rename your inverter inputs at at SYSTEM LEVEL under System configuration > Data sources. Default naming convention is: I_DCx_y (z)

  • x = MPPT

  • y = input

  • z = inverter

• By default, only one inverter is selected to be displayed. You can change the selection manually.

• Battery inverters are not included in this chart.
