meteocontrol compact wind speed sensor (0...10 V) / (4...20 mA)
Last modified:
meteocontrol compact wind speed sensor: Sensor connection

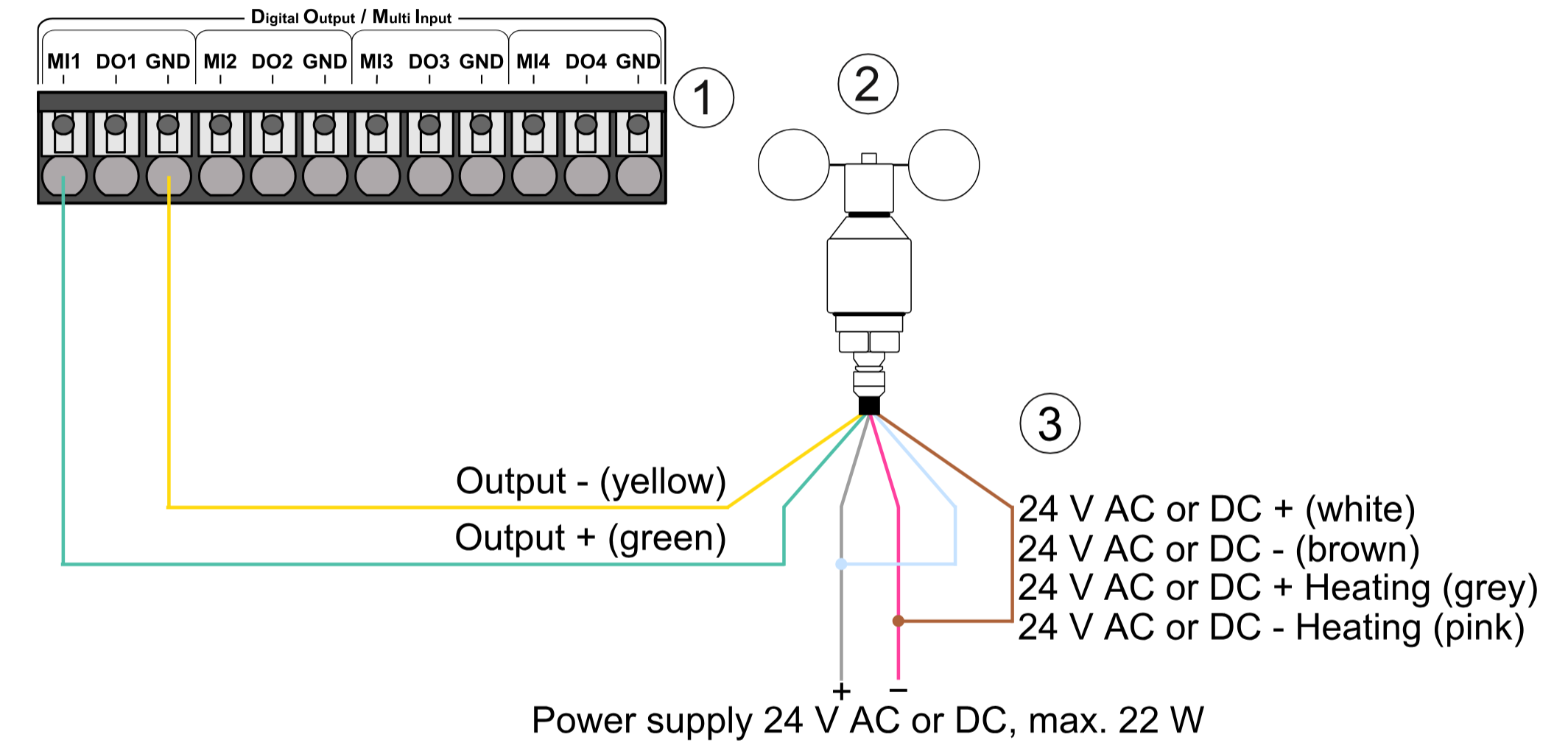

Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Wind speed sensor |
| 3 | Sensor power supply |
Connection
Wire color | Use |
|---|---|
Yellow | Wind speed signal ground |
Green | Wind speed signal (4…20 mA) |
Gray | Power supply for heater (24 V DC +) |
Pink | Heater GND (24 V DC -) |
White | Power supply for sensor (24 V DC +) |
Brown | Sensor GND (24 V DC -) |
Configuration data
Sensor | Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|---|
mc comp. wind speed sensor (0-10 V) | Wind speed | Analog 0 … 10 V | m/s | 5 | 0 |
mc comp. wind speed sensor (4-20 mA) | Wind speed | Analog 4 … 20 mA | m/s | 3.09 | -11.86 |
