meteocontrol compact wind direction sensor (0...10 V) / (4...20 mA)
Last modified:
meteocontrol compact wind direction sensor: Sensor connection
Description | |
|---|---|

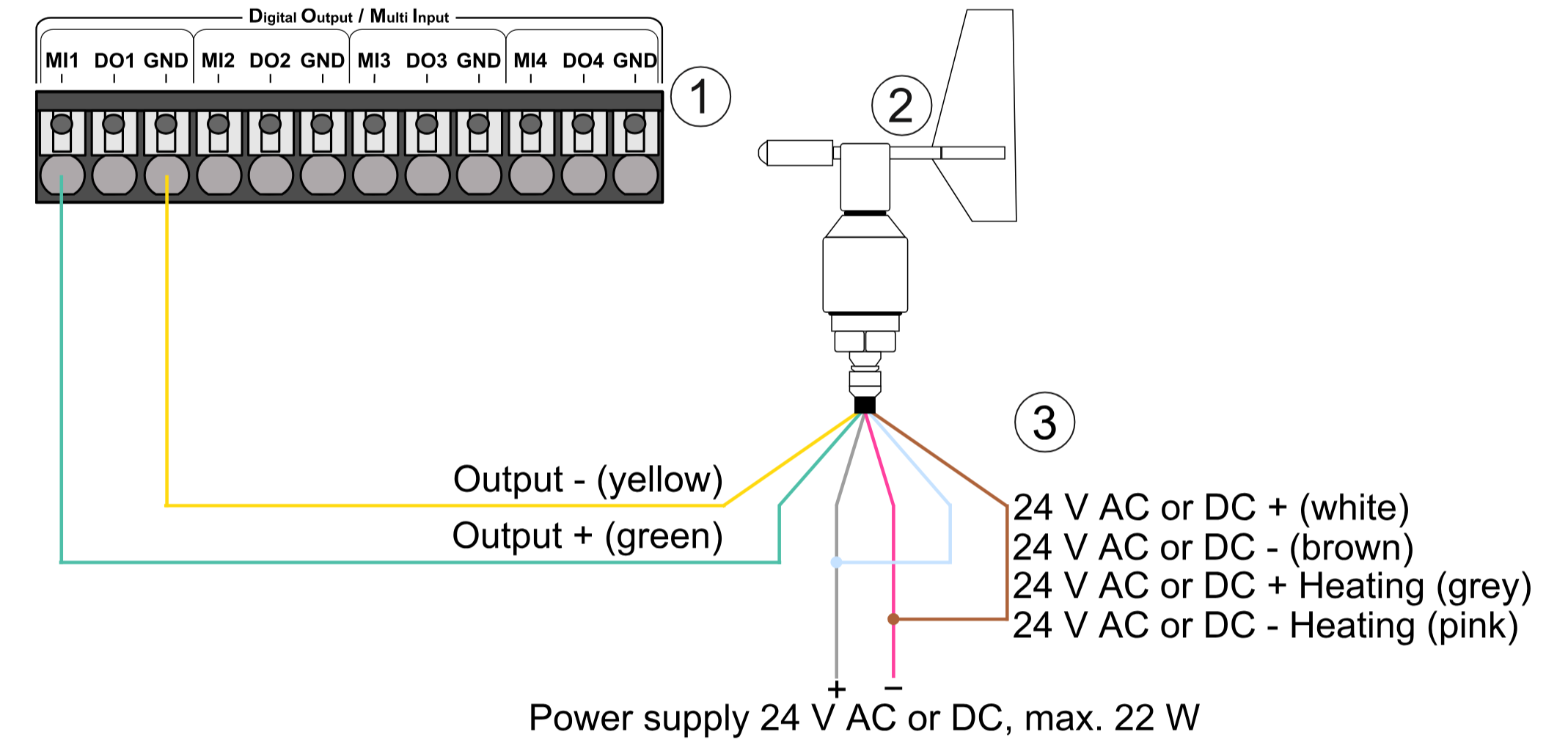

| 1 | Data logger terminal, digital output / multi-input |
| 2 | Wind direction sensor |
| 3 | Sensor power supply |
Connection
Wire color | Use |
|---|---|
Yellow | Wind direction signal GND |
Green | Wind direction signal (4…20 mA) |
Gray | Power supply for heater (24 V AC or DC +) |
Pink | Heater GND (24 V DC -) |
White | Power supply for sensor (24 V AC or DC +) |
Brown | Sensor GND (24 V AV or DC -) |
Configuration data
Sensor | Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|---|
mc compact wind direction (0-10 V) | Wind direction | Analog 0 … 10 V | ° | 36 | 0 |
mc compact wind direction (4-20 mA) | Wind direction | Analog 4 … 20 mA | ° | 22.5 | -90 |
