Module temperature sensors (analog): Tm-I-4090, Ta-I-4090-MC, Ta-ext-I-4090-MC
Last modified:
Module temperature sensors (analog): Tm-I-4090, Ta-I-4090-MC, Ta-ext-I-4090-MC: Sensor connection

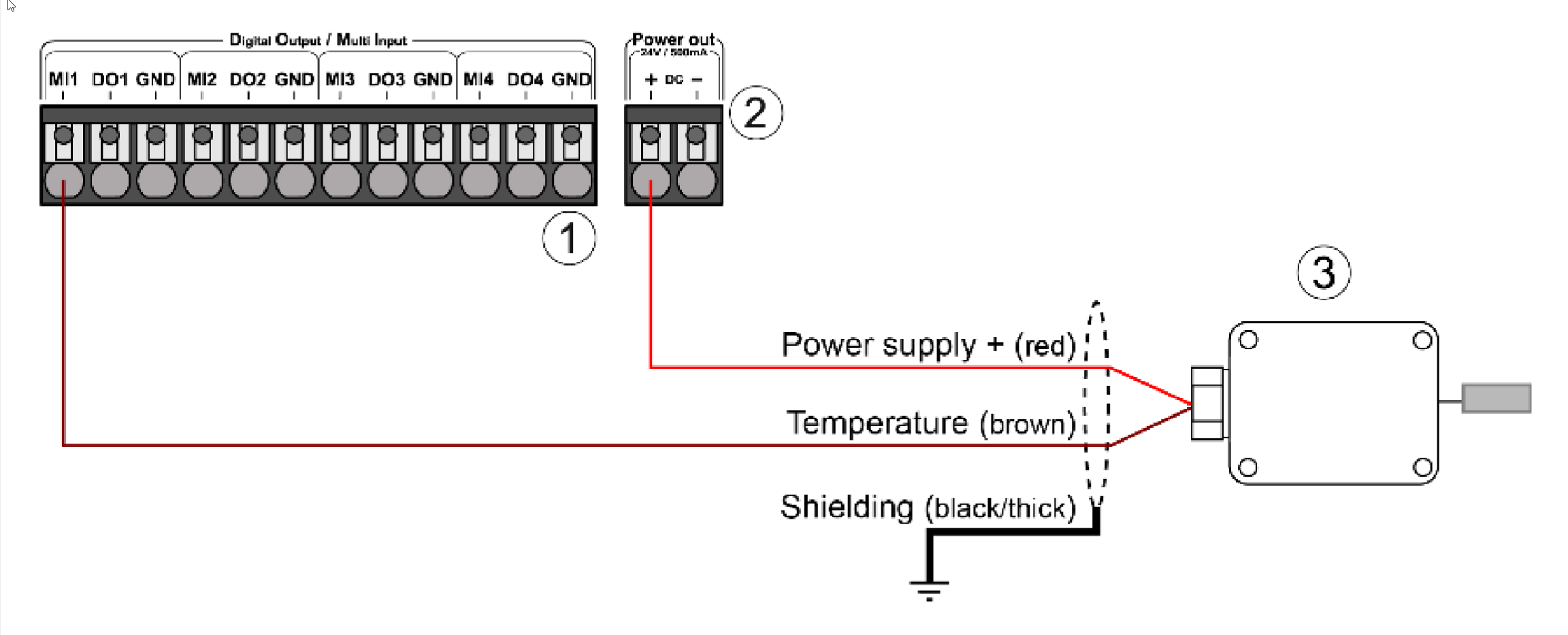

Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Data logger terminal, Power Out |
| 3 | Module temperature sensor |
Connection
Wire color | Use |
|---|---|
Red | Power supply + (12 … 28 V DC) |
Brown | Temperature signal (4 … 20 mA) |
Black (thick) | Shielding |
Configuration data
Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|
Temperature | Analog 4 … 20 mA | °C | 8.125 | -72.5 |
