Set up a HUAWEI SmartLogger 1000/2000/3000
General tips
-
Have the data source (data logger, etc.) serial number on hand. When entering the serial number, pay attention to uppercase and lowercase letters and empty spaces.
-
The data source name can be freely selected. For recommendations, see our Naming guideline.
-
Set the same measuring interval for all data sources in the system to ensure charts are accurately displayed in VCOM. This is used to normalize uneven timestamps and aggregate smaller recorded intervals into larger ones.
-
To ensure that the data source measuring interval has been set correctly in VCOM, open an imported file in the Data logger overview portlet in VCOM and check the timestamps.
-
If possible, perform a connection test once you have completed the configuration in both VCOM and the data source.
Configuration details
|
Protocol |
FTP |
|---|---|
|
File format |
CSV |
|
Measuring interval |
5/10/15 min |
|
Server |
|
|
Port |
21 |
Configuration: data logger
-
The measuring interval must be identical in all data loggers in the system to ensure that the charts are correctly displayed in the VCOM.
-
Transfer the displayed FTP access data into the corresponding fields on the Huawei data logger (FTP server address, user name, password).
-

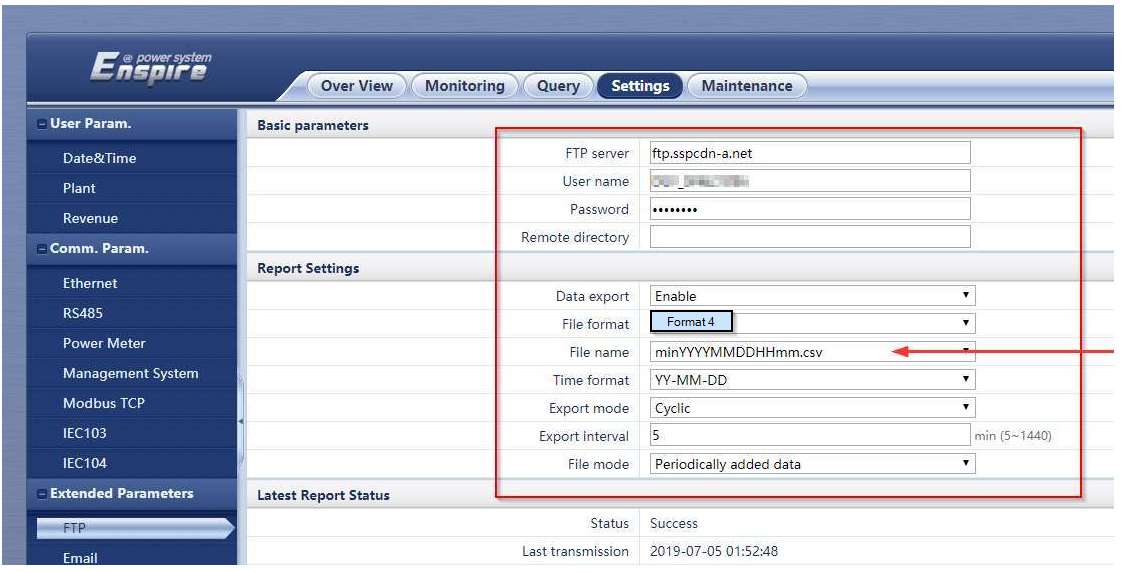

The other settings can be found in the following illustration:

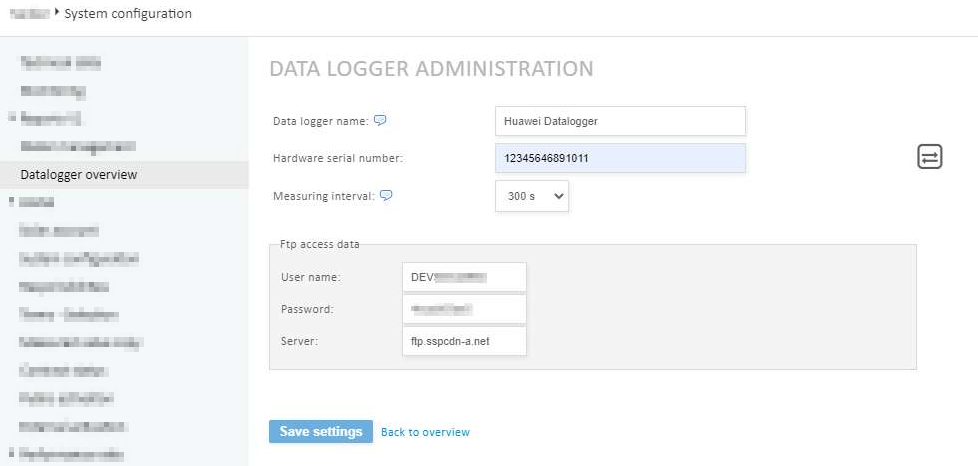

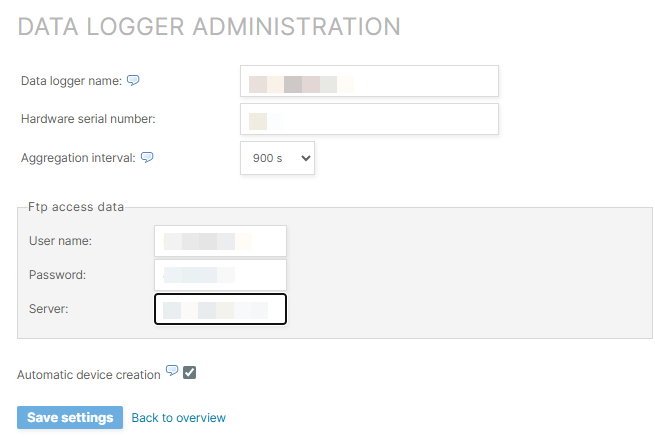

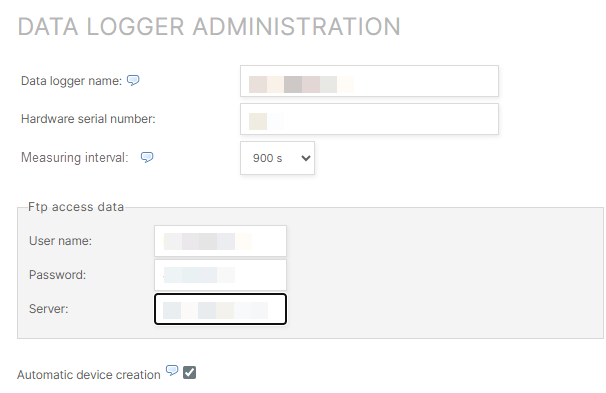

Configuration: VCOM
