Configure the battery devices' operating parameters

Last modified: 2026-10-05

Configure operating parameters for every battery device. These are required to calculate battery KPIs:

• Nominal capacity is required for the FCE and Availability KPI. See FCE/Full cycle equivalent KPI for battery devices and Availability KPI for battery devices.

• Min and max operating voltages are required for the availability KPI. See Availability KPI for battery devices.

Prerequisites

• The technology VCOM Battery Monitoring is activated. See Activate VCOM Battery Monitoring.

• User group technical customer or higher

Steps

1. At SYSTEM LEVEL , go to System settings > Data sources > [Data source name] > Battery units > Operating parameters.

2. In the overview table, the system’s battery devices of all hierarchy levels are listed.

3. Configure the devices' operating parameters:

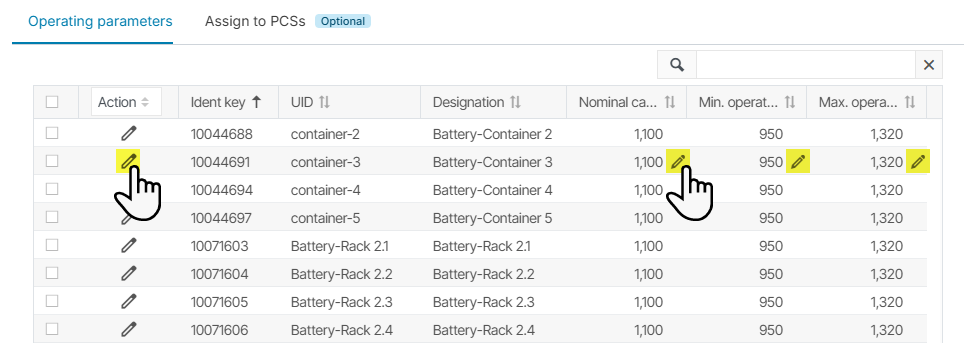

   • A single parameter of one device: Hover over a single value in the respective parameter column. Select the appearing Edit icon and enter the desired value. Confirm your input by pressing Enter.

   • All parameters of one device: Select Edit operating parameters in the Action column. In the appearing window, you can configure this battery device’s nominal capacity, as well as its min and max operating DC voltages at once. Select Save to confirm your inputs.



   • All parameters of multiple devices: Select the checkboxes for all battery devices that should be configured with the same values. Then select Edit in the Action dropdown. In the appearing window, enter the desired value(s). You do not have to configure all parameters, but only the ones that should be the same for all selected devices. If you do not enter a value for a parameter, the currently existing values for the individual devices remain unchanged. Select Save to confirm your inputs.

Parameter configurations are applied and KPIs are calculated with the new values.
