Set the bus address on the sensor (see sensor documentation).
-
If the device is the last one on the RS485 bus, terminate the bus with a 120 Ω terminating resistor.
-
Various Modbus devices can only be queried together if the serial communication parameters are identical (baud rate, number of data bits, parity, stop bits).
-
Pyranometers can be used to measure irradiance either in horizontal or module plane.
|

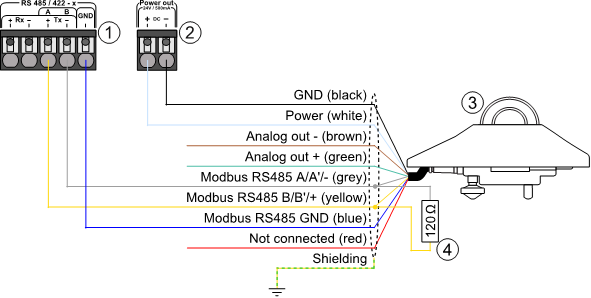

Description |
|
|---|---|
|
1 |
Data logger terminal, RS485 |
|
2 |
Data logger terminal, Power Out |
|
3 |
Pyranometer |
|
4 |
Terminating resistor |
Connection
|
Wire color |
Use |
|---|---|
|
|
GND |
|
|
Power supply (5 … 30 V DC) |
|
|
Irradiance signal GND |
|
|
Irradiance signal (4 … 20 mA) |
|
|
RS485 Modbus interface A (−) |
|
|
RS485 Modbus interface B (+) |
|
|
RS485 Modbus interface GND |
|
|
Not used |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
SMP3 |
200.203 |
|
SMP10 |
423.034 |
|
SMP10X |
423.080, 423.081 |
|
SMP12 |
200.299, 200.287 |
Download PDF
