Set the bus address on the sensor (see sensor documentation).
-
If the device is the last one on the RS485 bus, terminate the bus with a 120 Ω terminating resistor.
-
Various Modbus devices can only be queried together if the serial communication parameters are identical (baud rate, number of data bits, parity, stop bits).
-
Pyranometers can be used to measure irradiance either in horizontal or module plane.
|

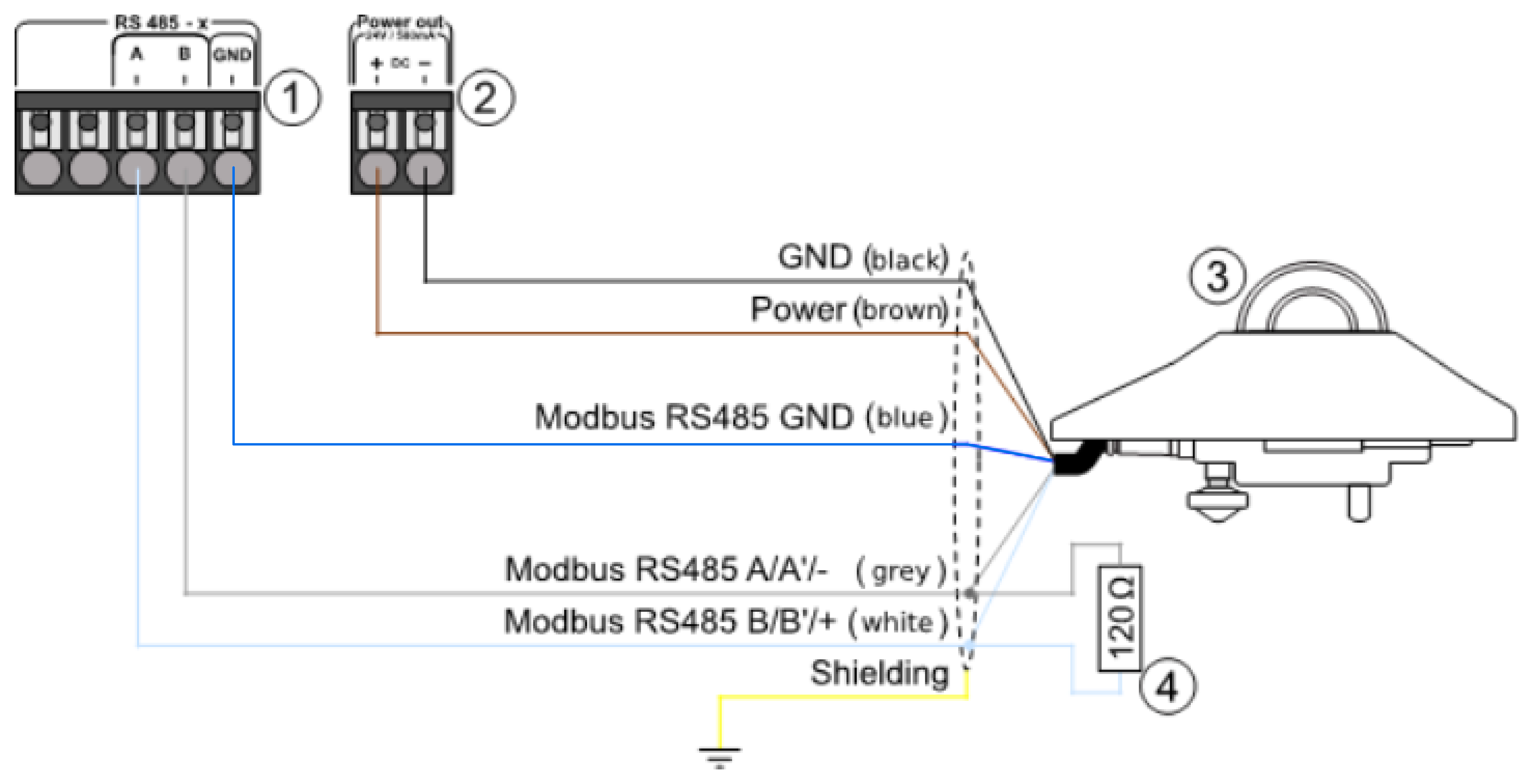

Description |
|
|---|---|
|
1 |
Data logger terminal, RS485 |
|
2 |
Data logger terminal, Power Out |
|
3 |
Pyranometer |
|
4 |
Terminating resistor |
Connection
|
Wire color |
Use |
|---|---|
|
|
GND |
|
|
Power supply (8 … 30 V DC) |
|
|
Modbus RS485 GND |
|
|
Modbus RS485 interface A (−) |
|
|
Modbus RS485 interface B (+) |
|
|
Shielding |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
SR200-D1 |
423.067 |
|
SR300-D1 |
423.066 |
|
SR05-D1A |
200.760 |
