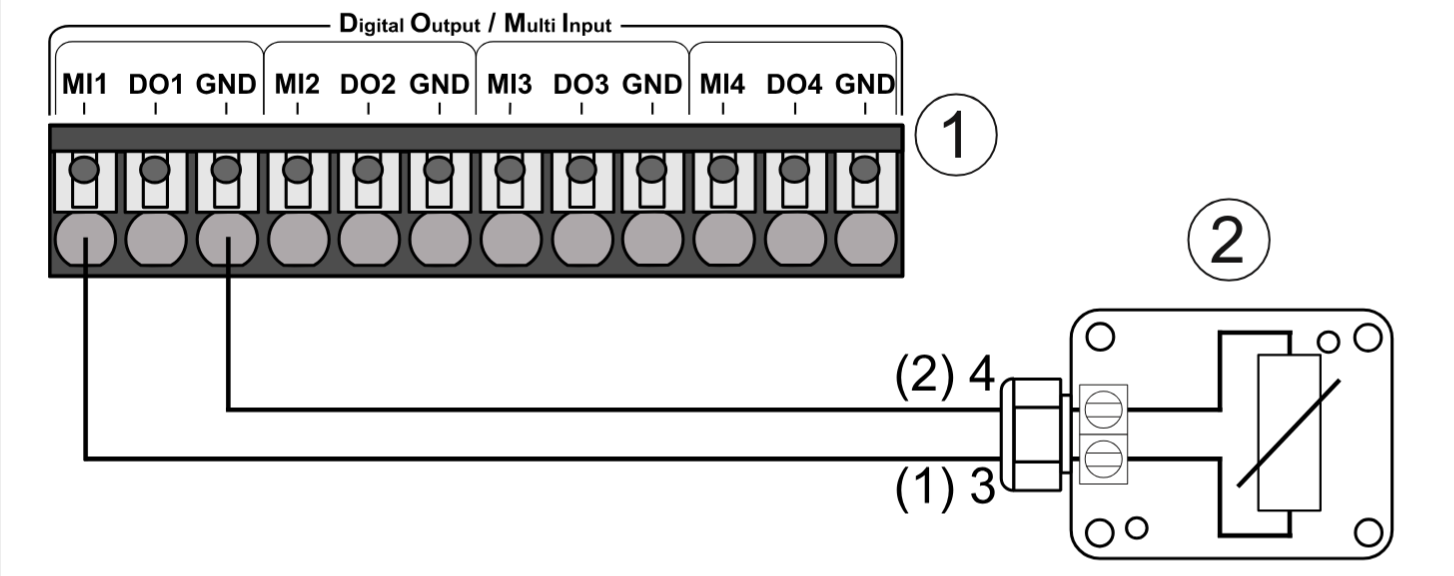

Description |
|
|---|---|
|
1 |
Data logger terminal, digital output / multi-input |
|
2 |
PT1000 sensor in the housing |

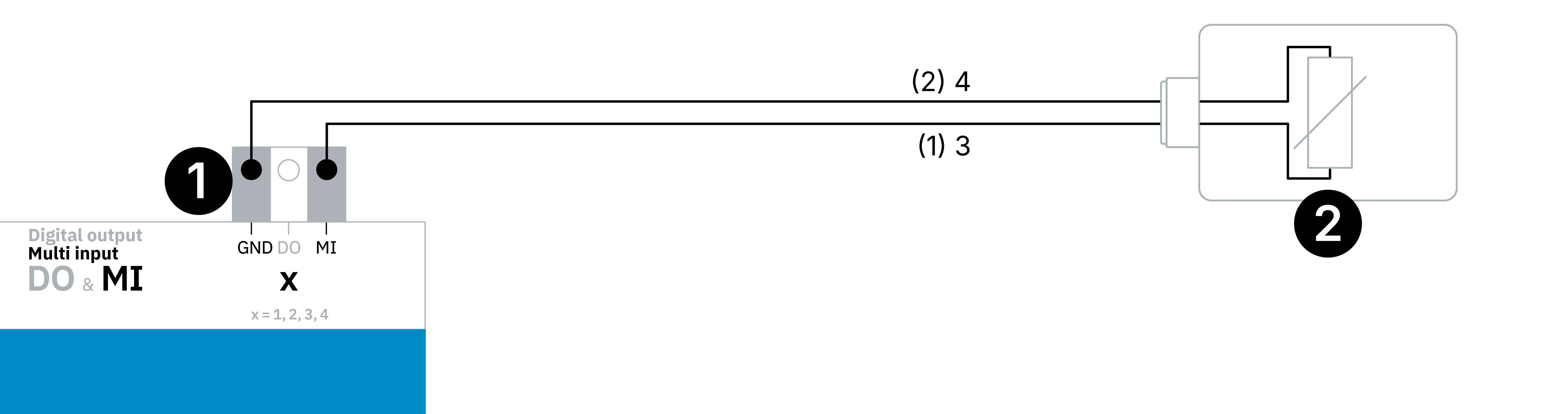

Connection
|
Wire |
Use |
|---|---|
|
(2) 4 |
Ground |
|
(1) 3 |
PT1000 temperature signal |
Configuration data
|
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|
|
Temperature |
PT1000 |
°C |
1 |
0 |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
PT1000 (with housing) |
423.210 |
Download PDF
bluelog Neo_PT1000 sensor in the housing_LastMod-2026-08-11_en.pdf
