mc compact wind direction sensor
(0…10 V) / (4…20 mA)
|
Description |
|
|---|---|
|

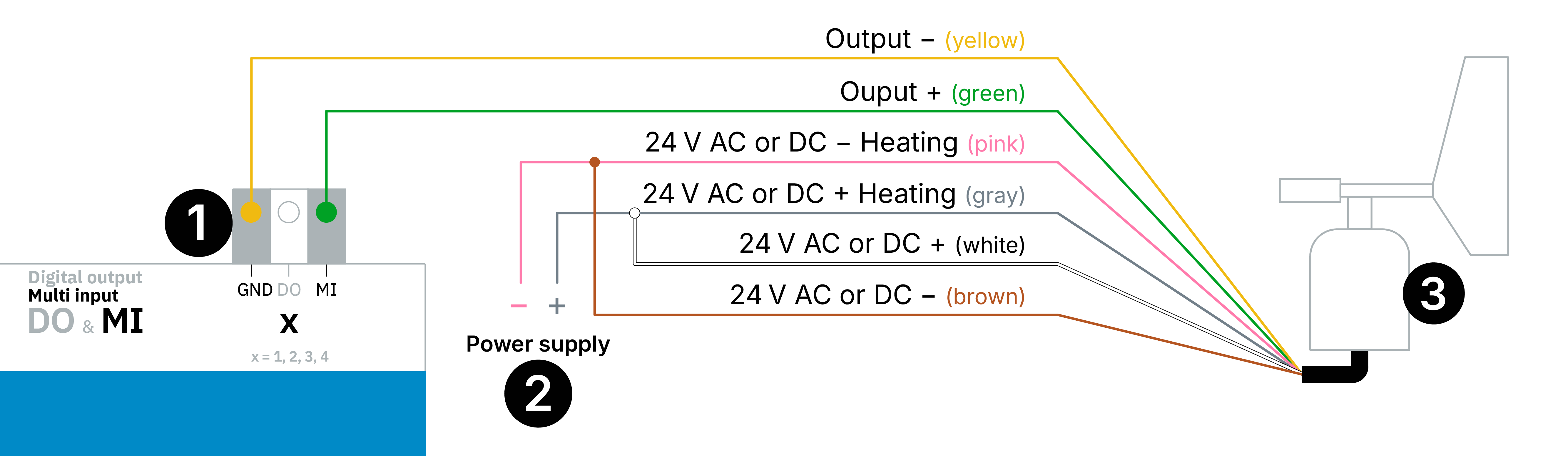

1 |
Data logger terminal, digital output / multi-input |
|
2 |
External power supply |
|
3 |
Wind direction sensor |
Connection
|
Wire color |
Use |
|---|---|
|
|
Wind direction signal GND |
|
|
Wind direction signal (4 … 20 mA) |
|
|
Heating GND (24 V DC −) |
|
|
Heating power supply (24 V AC or DC +) |
|
|
Sensor power supply (24 V AC or DC +) |
|
|
Sensor GND (24 V AV or DC −) |
Configuration data
|
Sensor |
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|---|
|
mc compact wind direction sensor (0 … 10 V) |
Wind direction |
Analog 0 … 10 V |
° |
36 |
0 |
|
mc compact wind direction sensor (4 … 20 mA) |
Wind direction |
Analog 4 … 20 mA |
° |
22.5 |
-90 |
Item numbers
|
Sensor |
Item nos. |
|---|---|
|
mc compact wind direction sensor |
423.411 |
Download PDF
bluelog Neo_Wind direction sensors_LastMod-2026-08-11_en.pdf
