PT100 meteocontrol compact
Last modified:

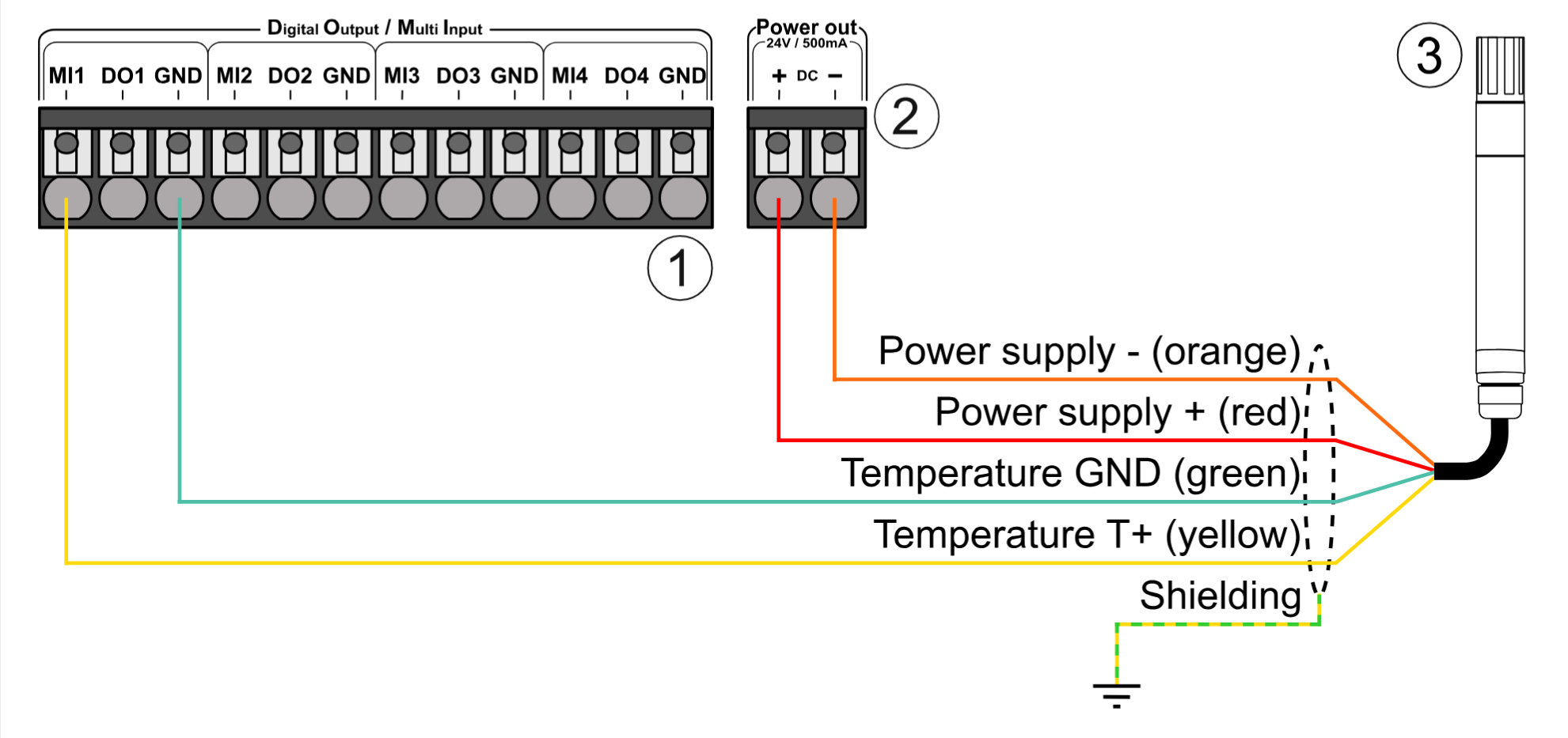

PT100 meteocontrol compact: Sensor connection
Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Data logger terminal, Power Out |
| 3 | PT100 temperature sensor |
Connection
Wire color | Use |
|---|---|
Orange | Ground |
Red | Supply voltage (24 V DC ± 10 %) |
Green | Temperature signal colour |
Yellow | Temperature signal (0…10 V) |
Configuration data
Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|
Temperature | Analog 0…10 V | °C | 10 | -30 |
