PT1000 sensor in the housing
Last modified:
PT1000 sensor in the housing

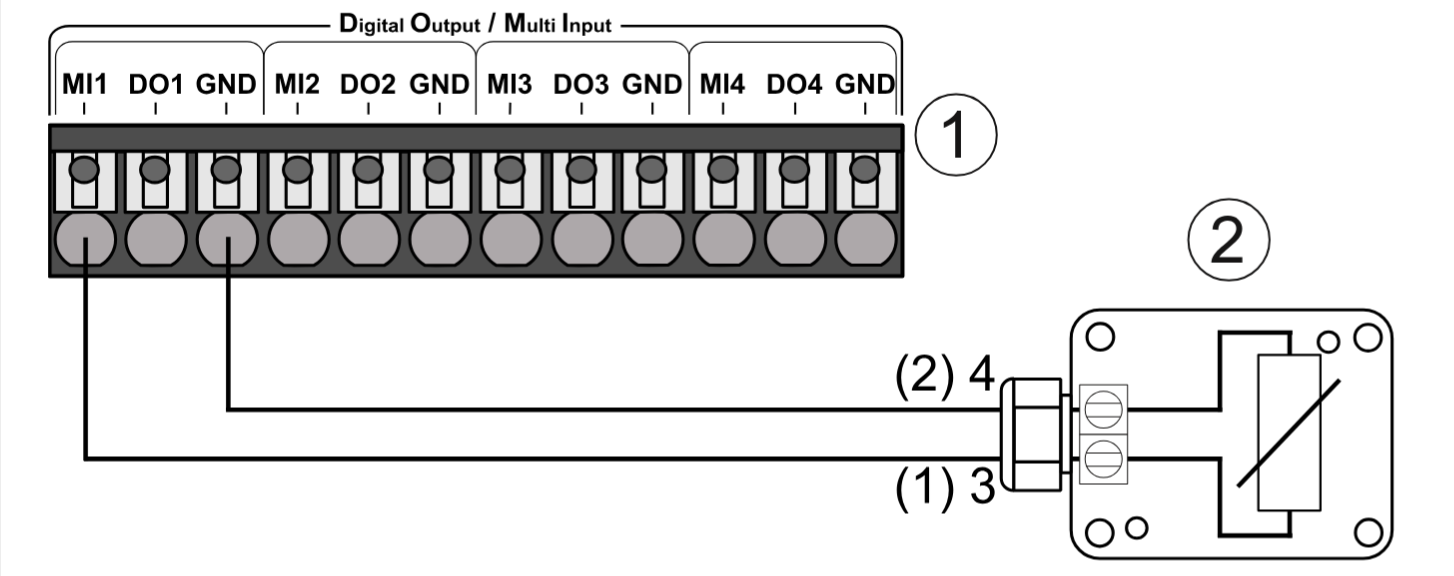

Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | PT1000 sensor in the housing |
Connection
Wire | Use |
|---|---|
(2) 4 | Ground |
(1) 3 | PT1000 temperature signal |
Configuration data
Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|
Temperature | PT1000 | °C | 1 | 0 |
