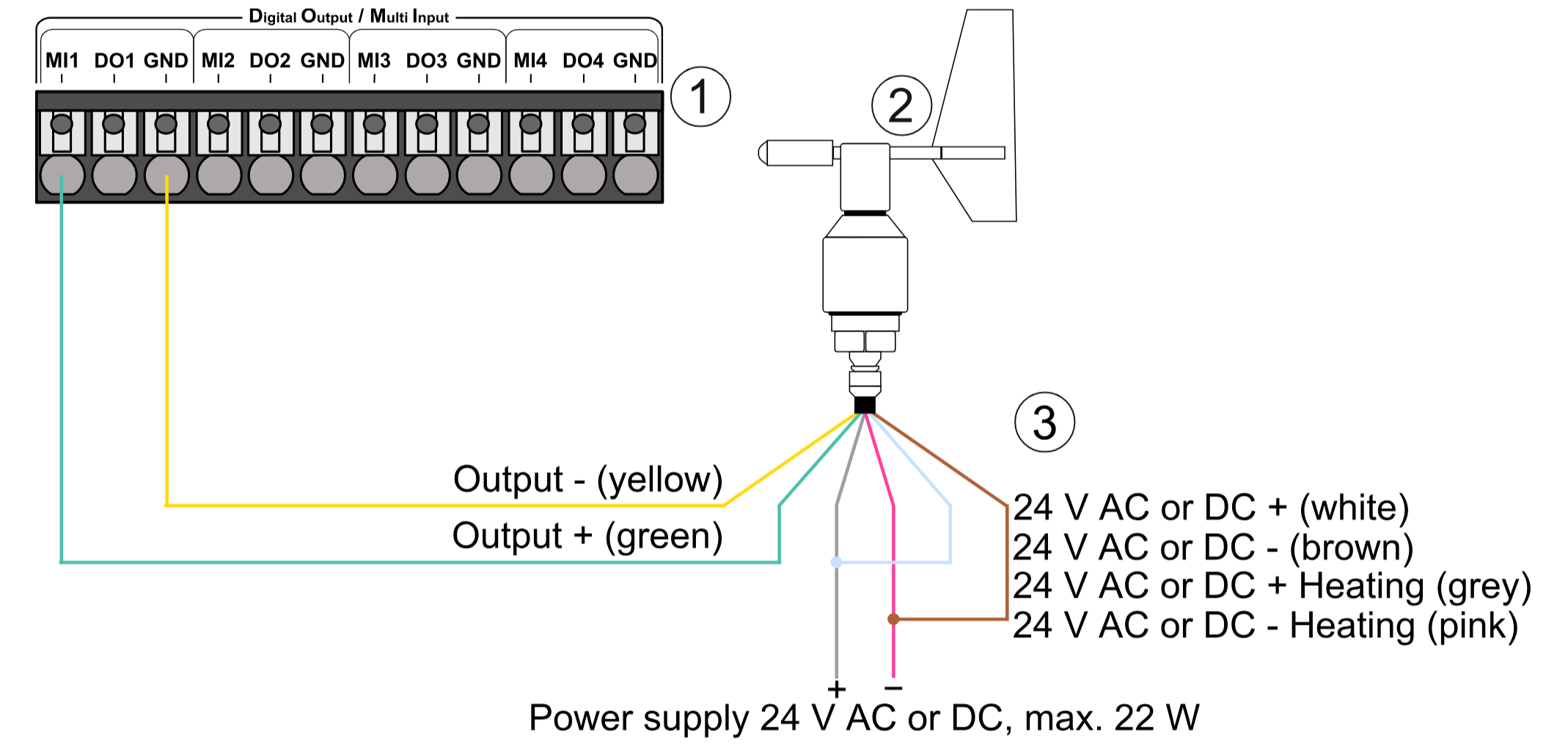

Description |
|
|---|---|
|
1 |
Data logger terminal, digital output / multi-input |
|
2 |
Wind direction sensor |
|
3 |
Sensor power supply |
Connection
|
Wire color |
Use |
|---|---|
|
Yellow |
Wind direction signal GND |
|
Green |
Wind direction signal (4…20 mA) |
|
Gray |
Power supply for heater (24 V AC or DC +) |
|
Pink |
Heater GND (24 V DC -) |
|
White |
Power supply for sensor (24 V AC or DC +) |
|
Brown |
Sensor GND (24 V AV or DC -) |
Configuration data
|
Sensor |
Measurement |
Input |
Unit |
Gradient |
Offset |
|---|---|---|---|---|---|
|
mc compact wind direction (0-10 V) |
Wind direction |
Analog 0 … 10 V |
° |
36 |
0 |
|
mc compact wind direction (4-20 mA) |
Wind direction |
Analog 4 … 20 mA |
° |
22.5 |
-90 |
