meteocontrol classic wind direction sensor (0...10 V) / (4...20 mA)
Last modified:

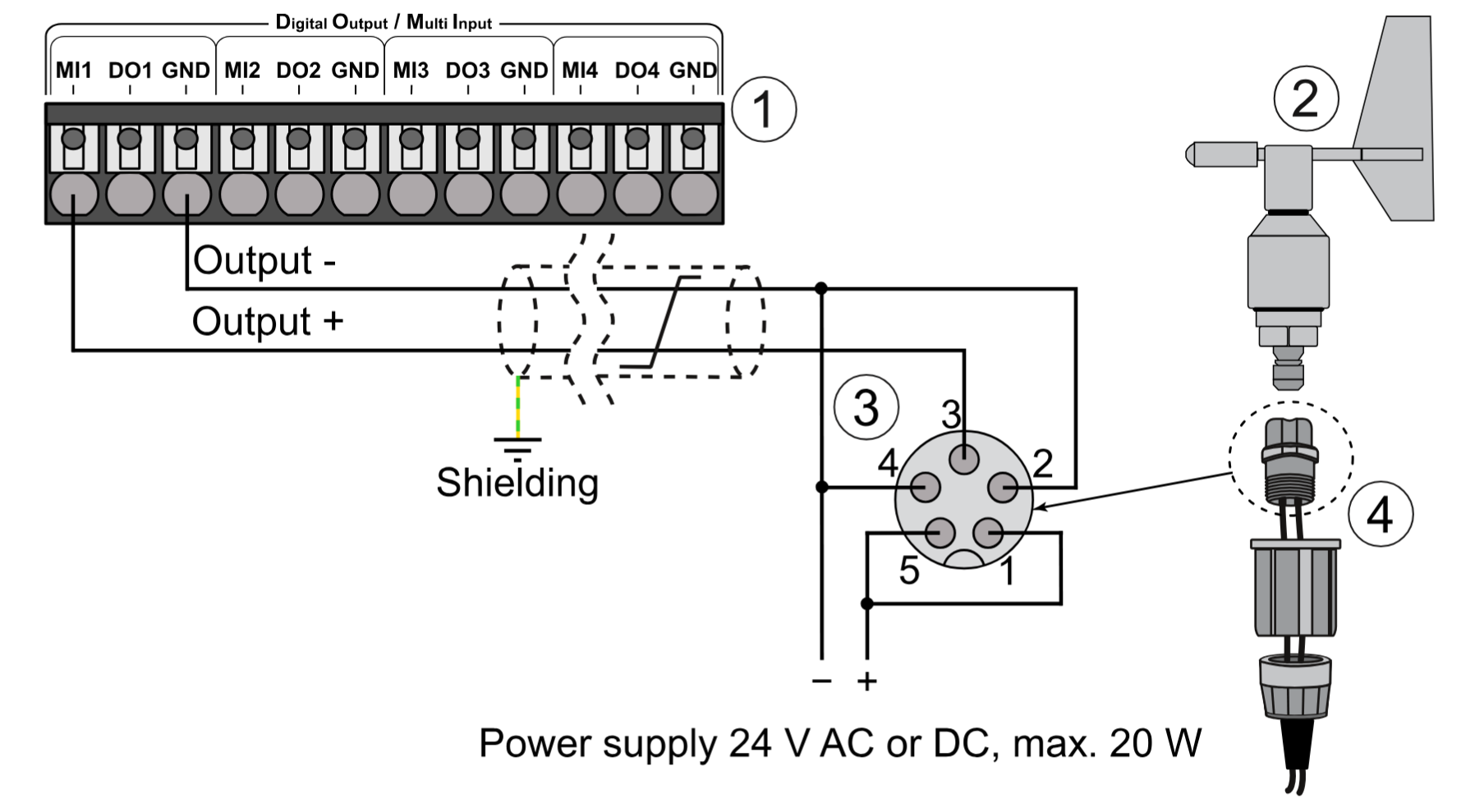

meteocontrol classic wind direction sensor: Sensor connection
Description | |
|---|---|
| 1 | Data logger terminal, digital output / multi-input |
| 2 | Wind direction sensor |
| 3 | Sensor connector assignment |
| 4 | Sensor connector |
Configuration data
Sensor | Measurement | Input | Unit | Gradient | Offset |
|---|---|---|---|---|---|
mc classic wind direction (0-10 V) | Wind direction | Analog 0 … 10 V | ° | 36 | 0 |
mc classic wind direction (4-20 mA) | Wind direction | Analog 4 … 20 mA | ° | 22.5 | -90 |
