DC current chart for inverter inputs

Last modified:

Chart

View the chart at SYSTEM LEVEL under Evaluation.

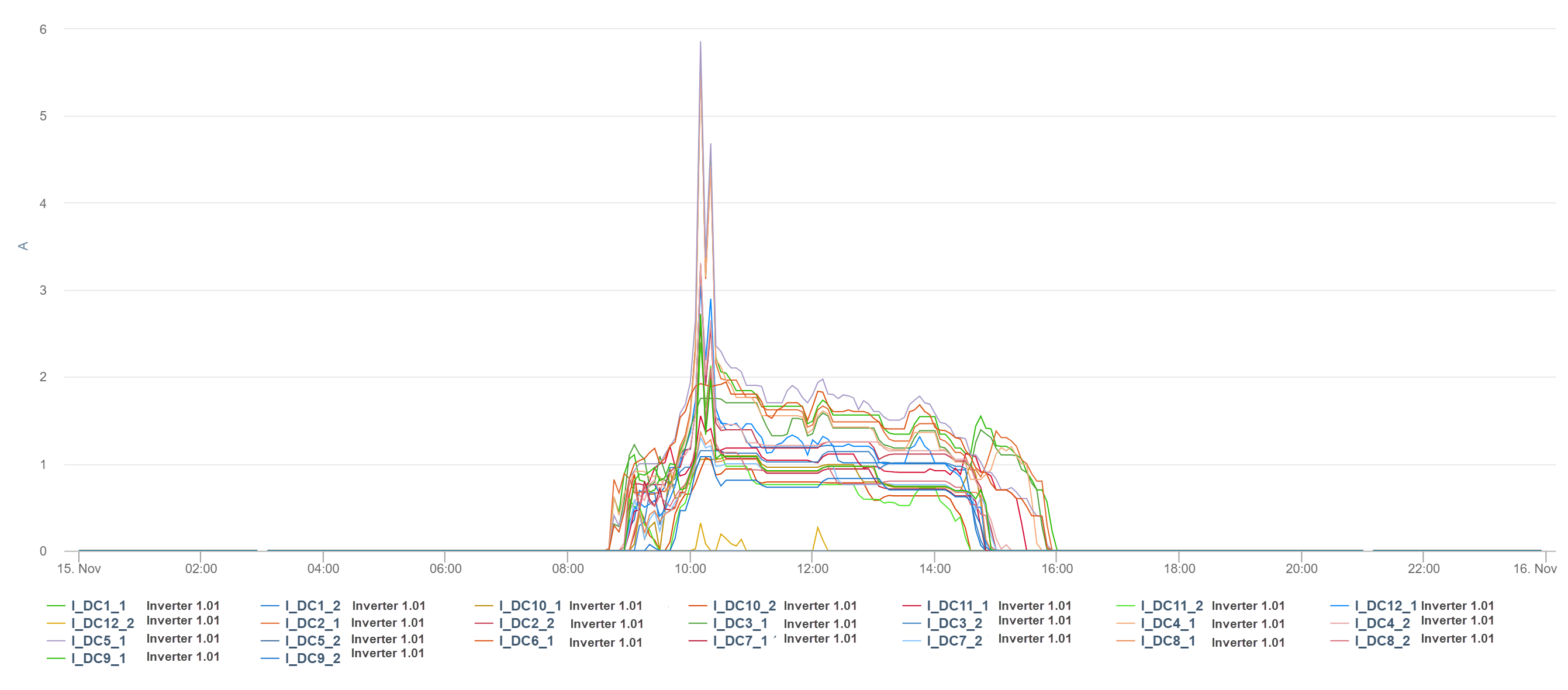

Example of DC current chart for inverter inputs, displaying each input of the 6 MPPTs of one inverter

Example of DC current chart for inverter inputs, displaying each input of the 6 MPPTs of one inverter

Basic info

Description

The DC current chart for inverter inputs allows you to monitor the DC current of each string of each inverter’s MPPT individually.

Prerequisites

  • For systems with string inverter inputs, the chart will automatically appear in the section Inverter inputs.

  • The chart is not available for systems with string combiner boxes.

Further details

  • Rename your inverter inputs at at SYSTEM LEVEL under icon-wrench1.png System configuration > icon-database-insert.png Data sources. Default naming convention is: I_DCx_y (z)

    • x = MPPT

    • y = input

    • z = inverter

  • Only one inverter is selected by default. You can change the selection manually.

  • Only activated inverter input strings are displayed in the chart. Activate or deactivate strings at SYSTEM LEVEL under icon-wrench1.png System configuration > icon-database-insert.png Data sources.

  • Battery inverters are not included in this chart.

Note

Find further information on the general functions within charts on Evaluations & charts.
