Ramp rate limiter (without Hybrid EMS)

Last modified:

To avoid rapid changes in the active power and reactive power output, the Ramp rate limiter feature allows the power generating system to follow a defined gradient to increase or decrease the active power output after receiving a new setpoint from the grid operator/third party.

The ramp rate limiter feature is available for active and reactive power control and is applied to the grid operator/third-party setpoint. The functions are described below.

Active power

Ramp up

The ramp rate configured for ramp up only applies to the new setpoint from the grid operator/third party if this increases the active power output.

Ramp up/Ramp down

You can define separate ramp rates for increasing and reducing the active power output:

  • Ramp rate (ramp-up)

  • Ramp rate (ramp-down)

Soft start

A soft start ramp rate will be applied when the active power at the point of common coupling is ≤ 0 W. The ramp rate remains in effect until the new setpoint is reached.

Example: If the active power is 0 W and the setpoint is 0 %, then:

  • The setpoint changes from 0 % to 100 %

  • The soft start remains active until the setpoint of 100 % is reached.

  • For a ramp rate of 1%/s, the soft start ramp rate is applied for 100 seconds.

Activation

Via the toggle on the user interface or via a Modbus command

Configuration of ramp rates

Via the toggle on the user interface or via a Modbus command

Reactive power

Ramp up

Applies to the new setpoint from the grid operator

Activation

Only via the toggle on the user interface

Configuration of ramp rates

Only via the user interface

Examples

Setpoint grid operator input signal

Output signal

Ramp rate limiter off

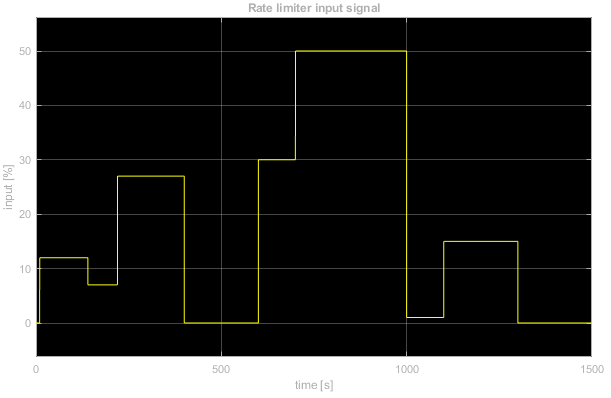

input - ramp rate limiter off

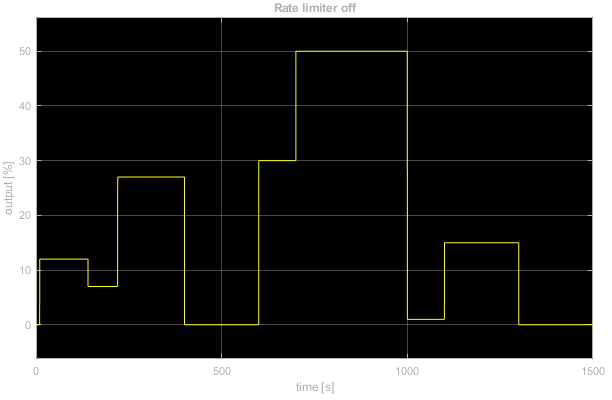

output - ramp rate limiter off

Ramp up

input - ramp up

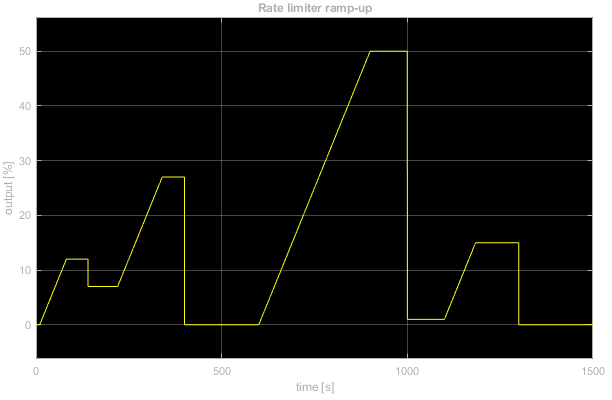

output - ramp up

Ramp up/ramp down

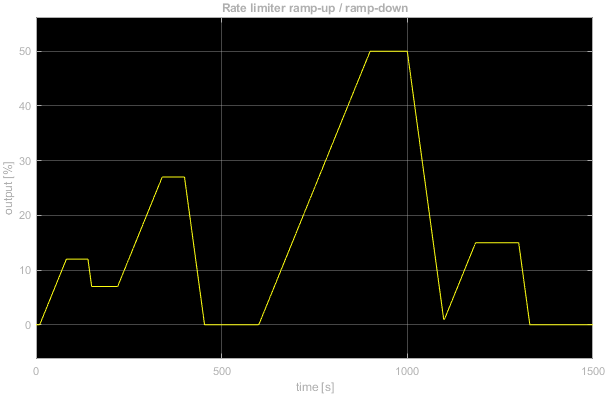

input - ramp up ramp down


Soft start

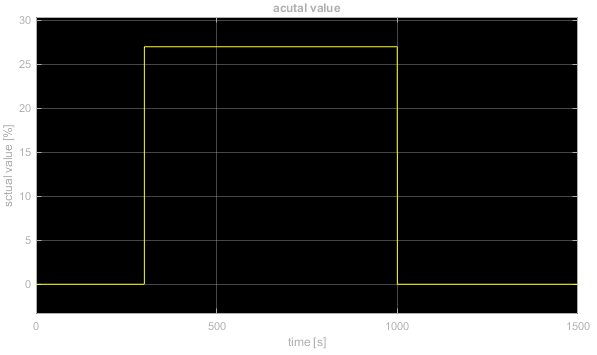

input - soft start
