Active power (without Hybrid EMS)
Last modified:
Under Power control > Active power, you can configure parameters related to active power control. The user interface is divided into 4 main sections, as described below.

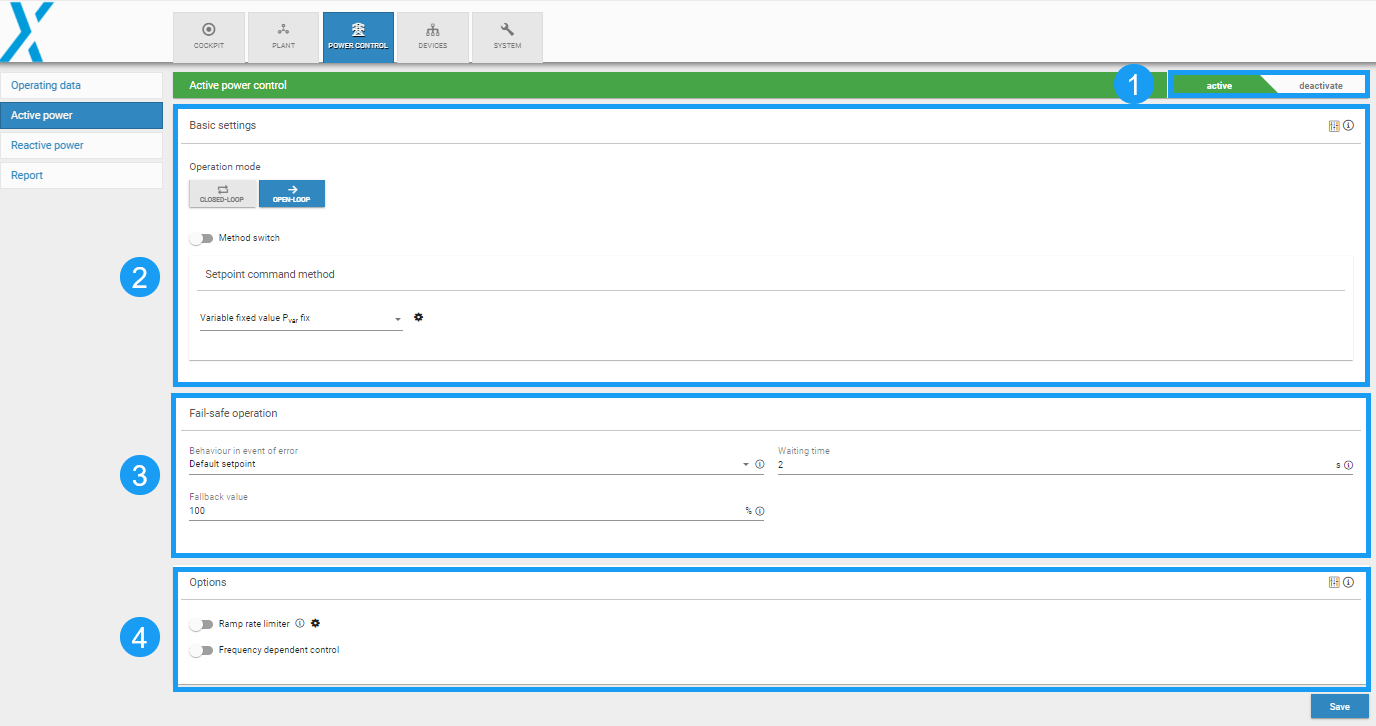

Active power overview
1. Power control toggle
Caution
Activate the Power Control toggle ONLY after you have fully configured your power control setup.
2. Basic settings
Operation mode
Method switch
Configure method switch via digital input or Modbus
Setpoint command method
The blue’Log provides the following setpoint command methods:
Method | Description |
|---|---|
Variable fixed value Pvar fix | A fixed value is defined as the default |
Variable fixed value Pvar Modbus | An external controller sends the specification to the blue’Log via Modbus TCP |
Variable fixed value Pvar AI | The specification depends on an analog signal (0-20mA) |
Variable fixed value Pvar DI | The specification depends on one or more digital inputs |
Each method can be used in the operating mode open-loop or closed-loop. It is not possible to switch automatically between open-loop and closed-loop. Select relevant parameters from the dropdown for the setpoint command method and enter the values by selecting the
Gear icon.
Extended controller parametrization
Active power control tuning options can be configured by selecting the Extended options icon:
Controller sampling time
Default value: 500 ms
Other options: 50 ms, 100 ms, 200 ms, 1000 ms, 2000 ms
For configuration assistance, we recommend our project-specific controller tuning services
3. Fail-safe operation
Configure fail-safe behavior in case of communication loss.
4. Options
Ramp rate limiter
Configure a ramp rate limiter.
Frequency-dependent control
Configure frequency-dependent control.
