Power flow portlet

Last modified:

Basic info

Item in the Portlet center

Power flow portlet

Description

The Power flow portlet displays the real-time power flow and direction between your system’s energy nodes, such as PV generation, grid, consumption, and batteries.

Prerequisites

  • Configure the portlet once by selecting Start configuration and select all relevant data sources for the energy nodes there. This will automatically create all relevant terms required to display the portlet.

Portlet properties

System portlet: The portlet can be added at the SYSTEM LEVEL.

Dynamic portlet: The portlet is updated when you select a different system name from the systems list.

Further details

Data sources for energy nodes

Configure each energy node’s data source at icon-circle-right4.png SYSTEM LEVEL under icon-wrench1.png System configuration > icon-stats-growth.png Calculations > Power flow.

Terms

The terms used for this portlet are the following:

  • E_Z_EVU (PV generation)

  • PF_P_CON (Consumption)

  • PF_P_GRID (Grid)

  • PF_P_BAT (Batteries)

Edit each of these terms to your needs at icon-circle-right4.png SYSTEM LEVEL under icon-wrench1.png System configuration > icon-stats-growth.png Calculations > Terms > icon-new-tab1.png Term editor. See also Terms

Overview of the portlet

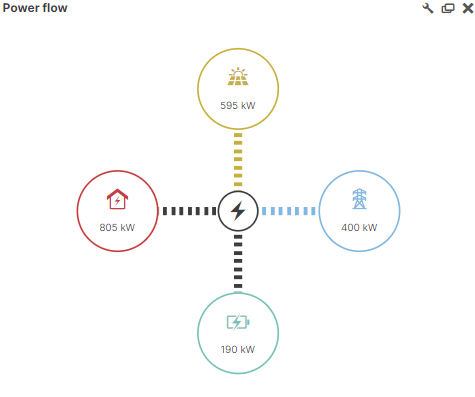

Overview of the power flow portlet.

Power flow portlet

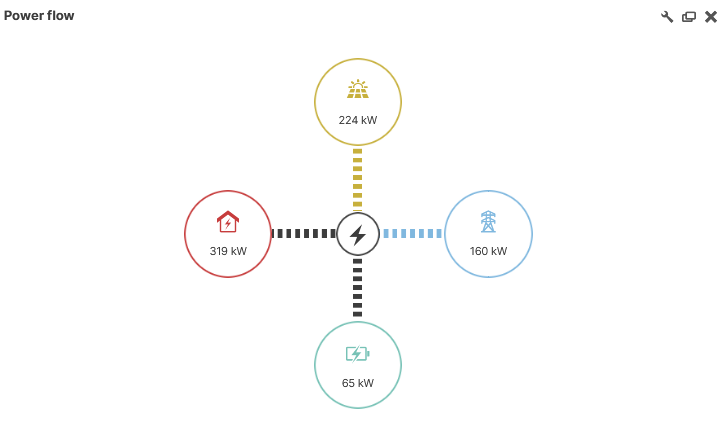

Troubleshooting

Problem

Grid flow directions are reversed.

Cause

The “reference arrow direction” on your data logger or meter has been incorrectly configured. This causes the power transformer to reverse the values for grid import and export and results in an incorrect power flow portlet.

Solution
  1. At icon-circle-right4.png SYSTEM LEVEL, go to icon-wrench1.png System configuration > icon-stats-growth.png Calculations > Terms > icon-new-tab1.png Term editor.

  2. In the table of terms, navigate to the term PF_P_GRID and select icon-pencil1.png Edit.

  3. Change the Formula: Add -(…) parenthesis and a minus around the formula.

  4. Select icon-floppy-disk1.png Save.

The values are reversed now and the grid flow direction in the power flow portlet is corrected.

Note

Alternatively, correct the configuration on your data logger or meter, or ensure the power transformer is connected properly. BLUE'LOG ONLY If using a blue’Log, see Meters for correcting these configurations.

Note that the historical data will still be incorrect in this case.
