Other devices

Last modified:

In the Other devices overview, view all additional external devices connected to your system (e.g. via data logger), such as meters, sensors, batteries, status signals, or power plant controllers. If desired, replace or delete devices here.

On SYSTEM LEVEL, go toicon-wrench1.png System configuration > icon-database-insert.png Data sources > [Data logger name] > Other devices.

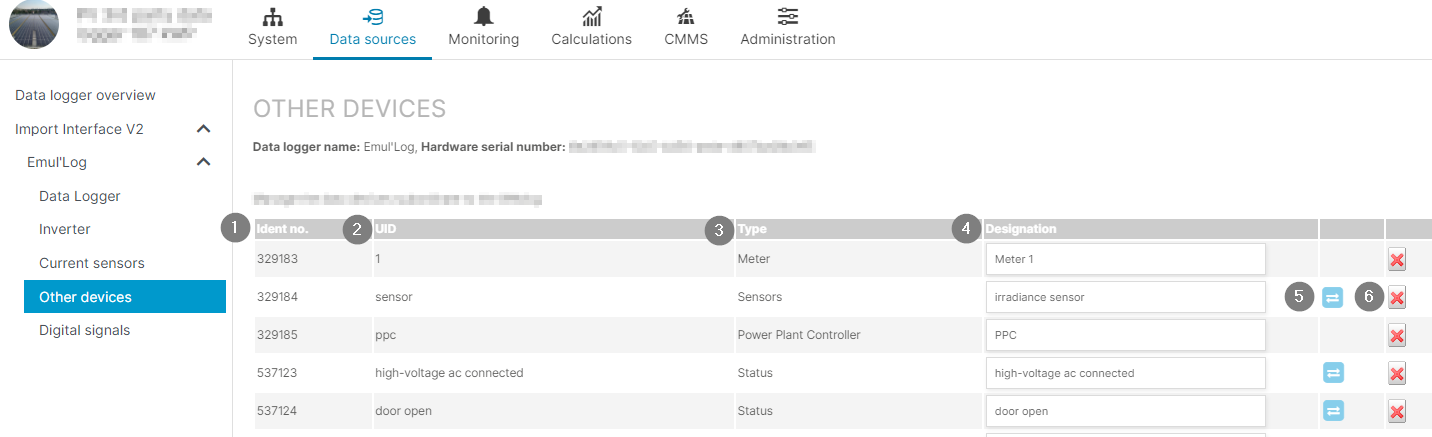

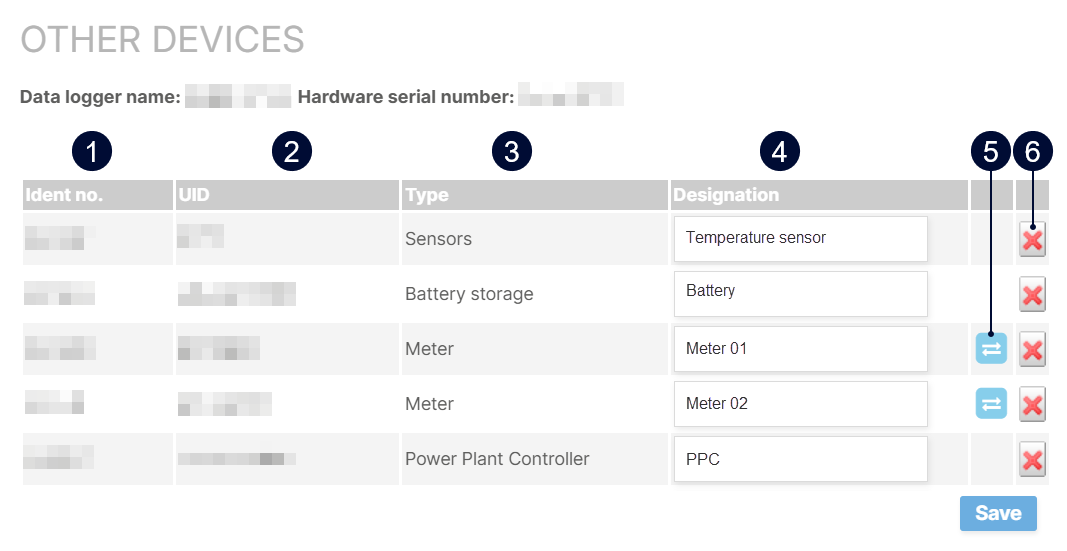

Overview of Other devices

Overview of Other devices

Name

Details

1

Ident no.

The Ident no. of a device is automatically assgined by VCOM. it is read-only and can not be changed.

2

UID

Device identifier during data import.

3

Type

Type of sensor or status signal.

4

Designation

The designation is the name of your device. It is automatically assigned based on the information from the data logger.

You may be able to edit the device designation depending on which data logger is installed. If you use a blue’Log, you can change the device name only directly in the blue'Log web interface.

5

icon-transmission.png Replace this device

This function exchanges a device or status signal with a new one. This process will delete the old device and transfer its Ident no. to the new device.

Example

You have exchanged a physical sensor on-site and now need to update VCOM as well.

6

image-20250612-060330.png Delete device

This function removes a device completely.

Warning

Use this function with caution as data may be lost irreversibly. If you have any questions, please contact Technical support.
