Device events portlet

Last modified: 23 Jul 2025

Basic info

Item in the Portlet center

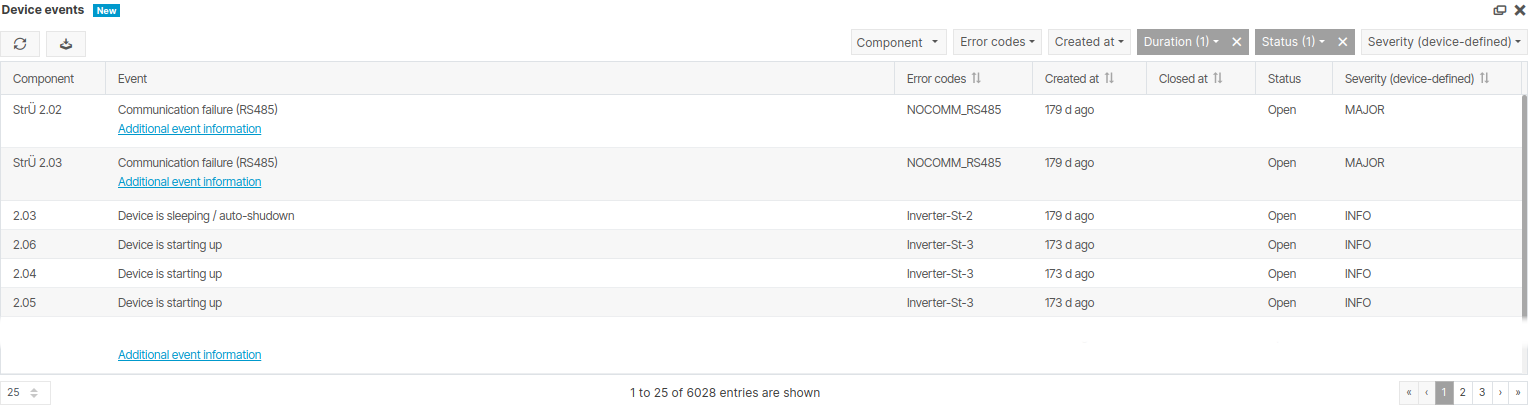

Description	BLUE'LOG The Device events portlet provides an overview of events for devices connected to your blue’Log data logger.
Prerequisites	To display information in the portlet, you must be using a blue’Log data logger.
Portlet properties	System portlet: The portlet can be added at the SYSTEM LEVEL. Dynamic portlet: The portlet is updated when you select a different system name from the systems list.

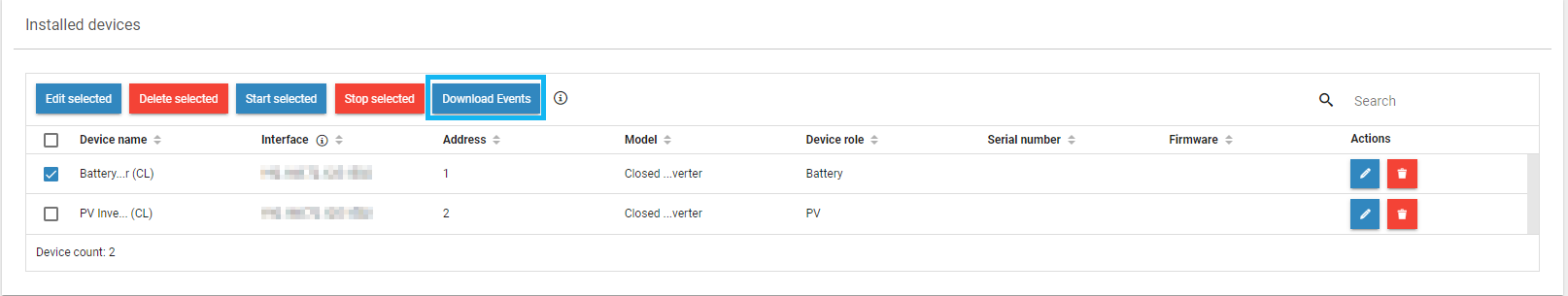

Further details	Actions on the blue’Log interface: You can configure which alarm types are sent to VCOM under Alarm/state configuration. You can view the list of events (= error/state messages, alarms) that can be generated by the individual devices. The contents of the list will vary depending on the specifications of each device. To view the list, go to Devices > Inverters (or other device) > Installed devices > Tick the relevant checkbox(es). Select Download events to download the list.

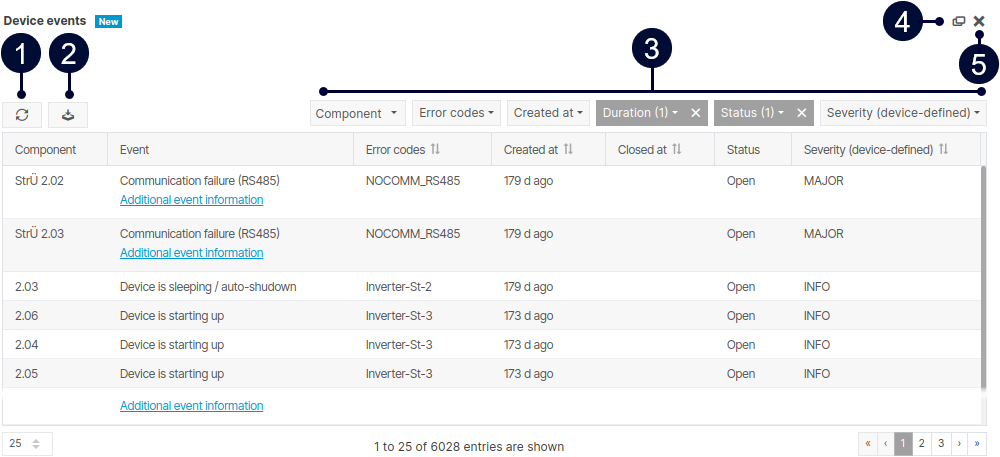

	Name	Description
1	Reload	Reload the portlet for an updated view.
2	CSV export	Download the list as a CSV.
3	Filters	Apply filters.
4	Maximize	Maximize or change the user-defined size of the portlet.
5	Close	Remove the portlet from the tab.

Communication failure or device startup/shutdown/standby mode:

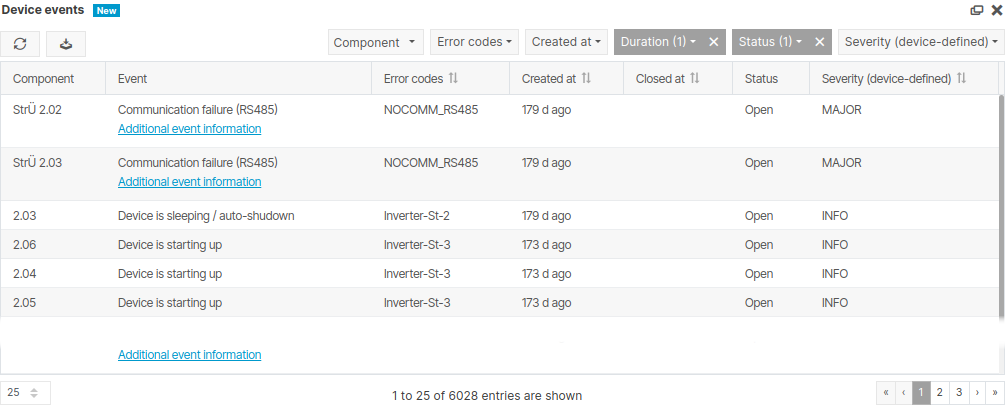

You can sort and filter events according to criteria such as components, error codes, duration, and severity. The Severity filter reflects the severity as defined on the devices themselves, and not from Smart Alarms.
If the device manufacturer has provided recommended actions, these will appear in the portlet.
