Control history portlet

Last modified:

Basic info

Item in the Portlet center

Control history portlet

Description

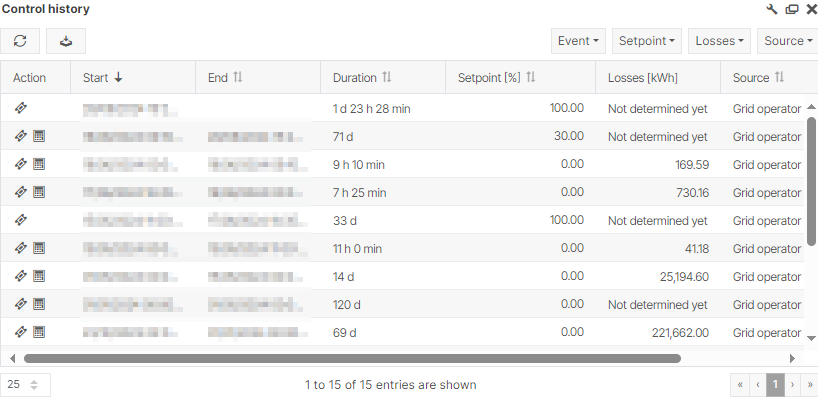

The Control history portlet provides an overview of all active power curtailments of your system.

Prerequisites

  • Power plant controller (PPC) data must be available.

Portlet properties

System portlet: The portlet can be added at the SYSTEM LEVEL.

Dynamic portlet: The portlet is updated when you select a different system name from the systems list.

Further details

None

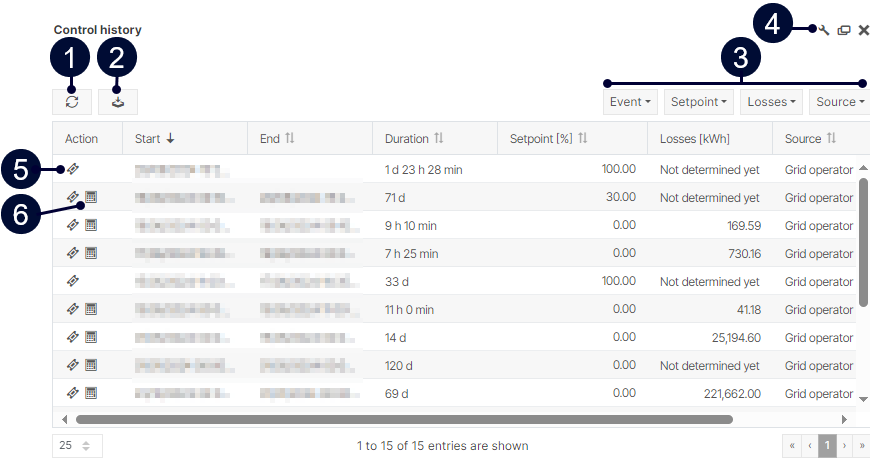

Overview of the portlet

Control history portlet

Name

Description

1

icon-loop3(1).png Reload

Reload the portlet for an updated view.

2

icon-download1.png CSV export

Download the list as a CSV.

3

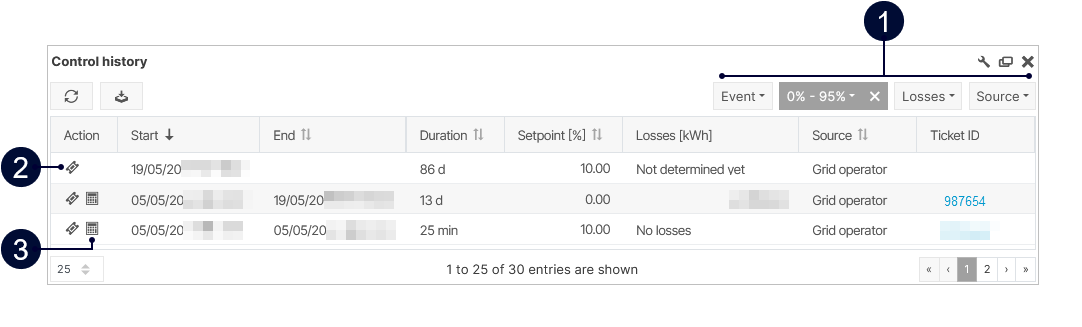

Filters

Enable filters

  • Event: period you wish to view.

  • Setpoint: apply a setpoint range.

  • Losses: display yield losses for which calculations must still be generated, or define when a curtailment is considered lost revenue in your system, e.g., starting at 100 kW. See also Yield loss calculation.

4

icon-wrench1.png Settings

Choose which columns to display.

5

icon-ticket1.png Ticket

Create tickets or assign existing tickets.

6

icon-calculator2.png Calculator

Calculate yield loss.
